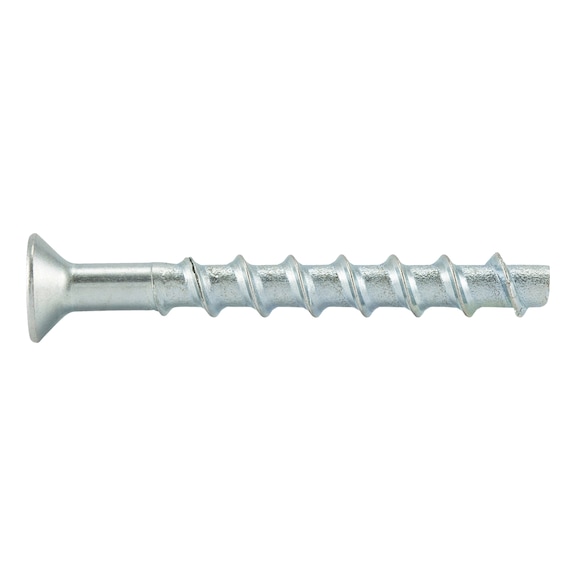

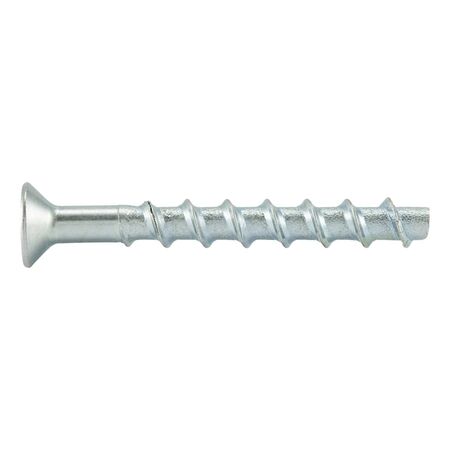

Concrete Screw with Countersunk Head | Zinc-Plated Steel | 6mm Anchor Size | Flush-Mount Installation | @Pack of 50 | by Wurth
Concrete screws with a countersunk head and zinc-plated steel are perfect for secure anchorage in concrete and masonry. With a 6mm anchor size and flush-mount installation capability, these screws are designed for high loads and efficient installation. Ideal for professionals, they offer immediate load-bearing capacity and flexibility with multiple anchorage depths.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 120 mm
- Attachment heights: 85 mm, 80 mm, 65 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- Head diameter: 13 mm
- Internal drive: TX30
- Head type: Countersunk head
- Material: Steel
- Surface finish: Zinc plated
- Type description: W-BS type SK
- Through-hole diameter in component: 8.0 mm
- Dimensions (H x L x W): 120mm x 120mm x 13mm
- Weight: 0.15 kg
Key Features
- Highest loads and efficient installation
- Flush-mount installation possible
- Zinc-plated steel for durability
- Extremely flexible application with up to three effective anchorage depths
- Fastening adjustable up to two times after installation for alignment
- Very low spacing and edge distances due to low expansion effect
- Immediate load-bearing capacity after installation
- Proof of performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Suitable for static, quasi-static, seismic actions and fire resistance ratings R30 to R120
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer instructions to ensure proper anchorage and load capacity.
Applications
- Anchorage in concrete and masonry
- Flush-mount installation of railings and handrails
- Fixing anchor plates and structural components
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements
- Efficient installation reduces waste and energy use on site
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Concrete Screw with Countersunk Head W-BS/S 50 PCS is available for immediate purchase, ideal for construction and building applications requiring secure anchorage in concrete and masonry.
