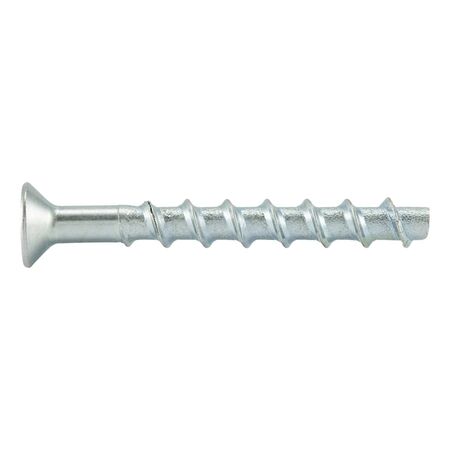

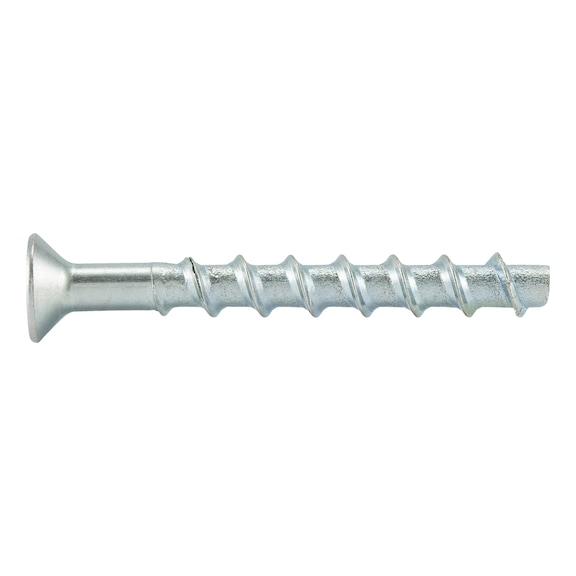

Concrete Screw with Countersunk Head | Zinc-Plated Steel | 6mm Anchor Size | @Pack of 100 | by Wurth
Concrete screws with a countersunk head and zinc-plated steel are perfect for secure anchorage in concrete and masonry. With a 6mm anchor size and flush-mount installation capability, these screws are designed for high loads and efficient installation. Ideal for construction professionals, they offer flexibility with multiple anchorage depths and immediate load-bearing capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 100 mm
- Attachment heights: 65 mm, 60 mm, 45 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- Head diameter: 13 mm
- Internal drive: TX30
- Head type: Countersunk head
- Material: Steel
- Surface finish: Zinc plated
- Through-hole diameter in component: 8.0 mm
- Type description: W-BS type SK
- Dimensions (H x L x W): 100mm x 100mm x 13mm
- Weight: 0.15 kg
Key Features
- Highest loads and efficient installation
- Flush-mount installation possible
- Zinc-plated steel for durability
- Extremely flexible application with up to three effective anchorage depths
- Fastening adjustable up to two times after installation for alignment
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
- Suitable for static, quasi-static, and seismic actions
Professional Installation Requirements
- Installation should be performed by qualified professionals following the provided installation instructions to ensure safety and performance.
Applications
- Anchorage in concrete and masonry
- Flush-mount installation of railings and handrails
- Fastening anchor plates and structural components
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements
- Efficient installation reduces waste and resource use on site
Warranty Information
Warranty details available upon request from Wurth, typically covering manufacturing defects.
Available Now
The Wurth Concrete Screw with Countersunk Head W-BS/S 100 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure anchorage in concrete and masonry.
