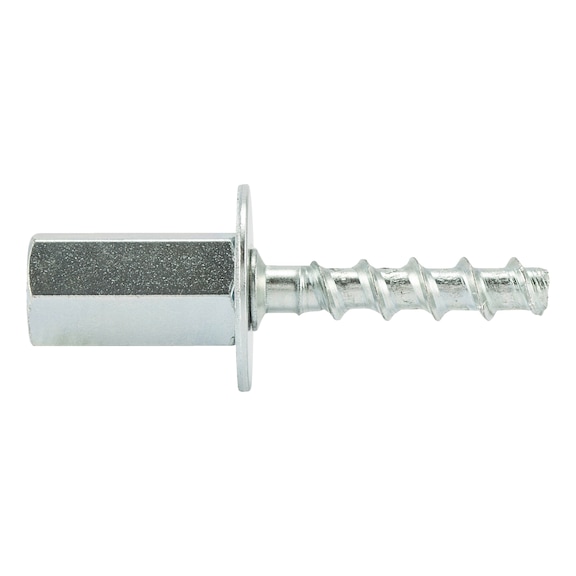

Concrete Screw with Female Thread W-BS/S | Zinc Plated Steel | M8/M10 Compatibility | High Load Capacity | @Pack of 50 | by Wurth
Concrete screws with female thread W-BS/S are designed for high load capacity and efficient mounting in concrete and masonry. Made from durable zinc-plated steel, these screws are perfect for suspensions and fittings with M8/M10 threaded rods, ensuring immediate load-bearing capacity after installation. Ideal for professional use, they offer flexibility with multiple anchorage depths and easy overhead installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Thread diameter: 7.5 mm
- Anchor length: 35 mm
- Head type: With female thread (metric)
- Connection thread: M8, M10
- Material: Steel
- Surface: Zinc plated
- External drive: WS13
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depth: 40 mm
- Embedding depth: 35 mm
- Attachment height: 0 mm
- Through-hole diameter in component: 8.0 mm
- Approvals: ETA-16/0043, ETA-16/0128
- Dimensions (H x L x W): 35mm x 35mm x 6mm
- Weight: 0.05 kg
Key Features
- Highest load capacities and efficient mounting
- Suitable for suspensions and fittings with female threaded rods M8/M10
- Zinc-plated steel for durability
- Extremely flexible application with up to three effective anchorage depths
- Sleeve and M8/M10 combination internal thread
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation, especially overhead
- Immediate load-bearing capacity after installation
- Fastening can be adjusted up to two times after installation
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions to ensure proper anchorage and load capacity.
Applications
- Anchorage in concrete and masonry

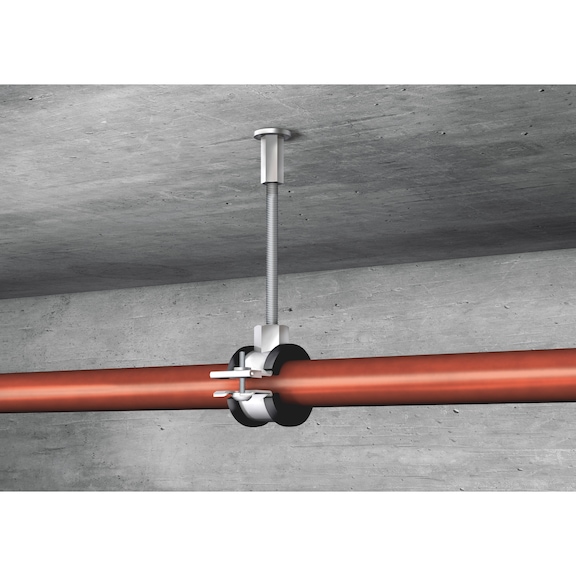

- Suspensions and fittings with threaded rods (female thread M8/M10)
- Overhead fastening requiring immediate load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty terms for details.
Available Now
Wurth Concrete Screw with Female Thread W-BS/S 50 PCS is available for immediate purchase, ideal for construction and industrial anchorage applications.
