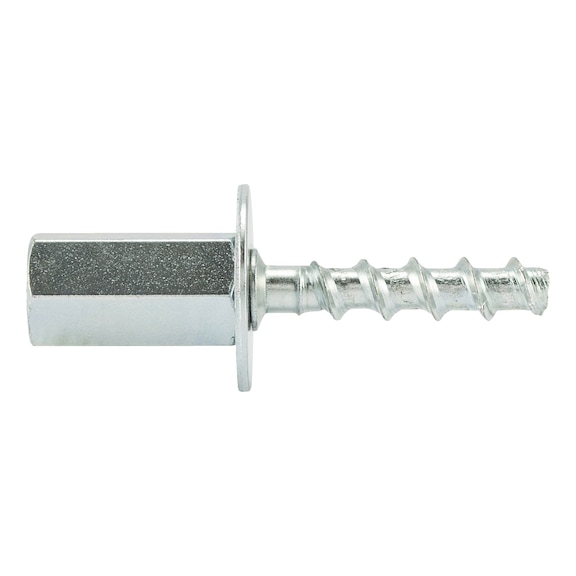

Concrete Screw with Female Thread W-BS/S | Zinc Plated Steel | M8/M10 Compatibility | @Pack of 50 | by Wurth
Concrete screws with female thread W-BS/S are designed for secure anchorage in concrete and masonry, featuring M8/M10 compatibility and durable zinc-plated steel construction. Ideal for overhead installations, these screws provide immediate load-bearing capacity and can be adjusted post-installation, making them perfect for professional applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Thread diameter: 7.5 mm
- Anchor length: 55 mm
- Head type: With female thread (metric)
- Connection thread: M8, M10
- Material: Steel
- Surface: Zinc plated
- External drive: WS13
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- Attachment heights: 20 mm, 15 mm, 0 mm
- Through-hole diameter in component: 8.0 mm
- Approvals: ETA-16/0043, ETA-16/0128
- Dimensions (H x L x W): 55mm x 55mm x 6mm
- Weight: 0.05 kg
Key Features
- Highest load capacities and efficient mounting
- Suitable for suspensions and fittings with female threaded rods M8/M10
- Zinc-plated steel for durability
- Extremely flexible application with up to three effective anchorage depths
- Sleeve and M8/M10 combination internal thread
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation, especially overhead
- Immediate load-bearing capacity after installation
- Fastening can be adjusted up to two times after installation
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchorage and load capacity.
Applications
- Anchorage in concrete and masonry
- Suspensions and fittings with threaded rods (female thread M8/M10)
- Overhead installations requiring immediate load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements
- Efficient mounting reduces material waste during installation
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Female Thread W-BS/S 50 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure anchorage in concrete and masonry.
