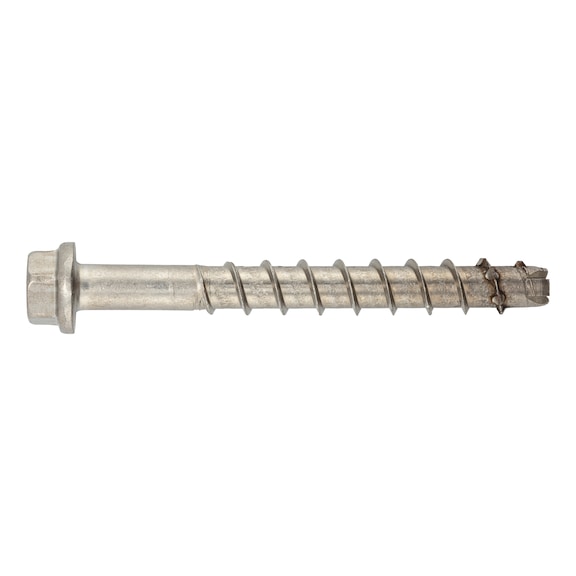

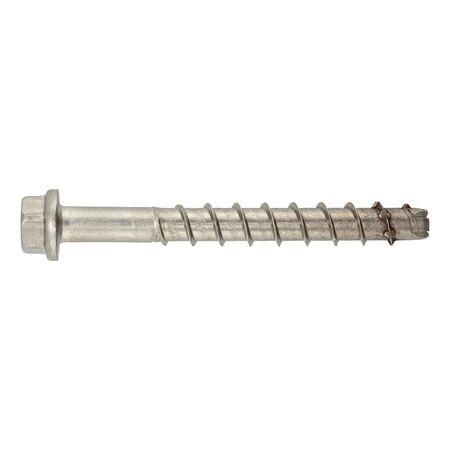

Concrete Screw with Hexagon Head W-BS 2/A4 | 10mm Anchor Size | A4 Stainless Steel | @Pack of 25 | by Wurth
Concrete screws with hexagon heads are designed for high-load applications, featuring a 10mm anchor size and durable A4 stainless steel construction. Ideal for mounting metal structures and fixing stair railings, these screws ensure easy installation and flexibility with three effective anchorage depths. Perfect for professionals seeking reliable fastening solutions in concrete.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 10 mm
- Anchor length: 100 mm
- Attachment heights: 45 mm, 25 mm, 15 mm
- Thread diameter: 12 mm
- Nominal drill-bit diameter: 10 mm
- Drill hole depths: 65 mm, 85 mm, 95 mm
- Embedding depths: 55 mm, 75 mm, 85 mm
- External drive: WS15
- Material: Stainless steel A4
- Surface: Plain
- Washer diameter: 20 mm
- Head diameter: 17 mm
- Through-hole in component: 14 mm
- Head type: Hexagon head
- Dimensions (H x L x W): 100mm x 100mm x 17mm
- Weight: 0.15 kg
Key Features
- High working loads and easy installation
- Made from A4 stainless steel for durability
- New thread geometry ensures smooth screwing and greater efficiency
- Fastest type of fastening for medium and heavy loads
- Three effective anchorage depths for flexible application
- Attachments can be adjusted up to twice retrospectively
- Minimum spacing and edge distances due to very low expansion effect
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchorage and compliance with safety standards.
Applications
- Mounting metal structures in concrete
- Fixing stair railings and anchor plates
- Medium and heavy load fastening in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel A4 which is corrosion resistant and long-lasting, reducing replacement frequency
- Efficient fastening reduces material waste and energy use during installation
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS 2/A4 Type H 25 PCS is available for immediate purchase. Ideal for construction and structural fastening applications requiring high load capacity and corrosion resistance.
