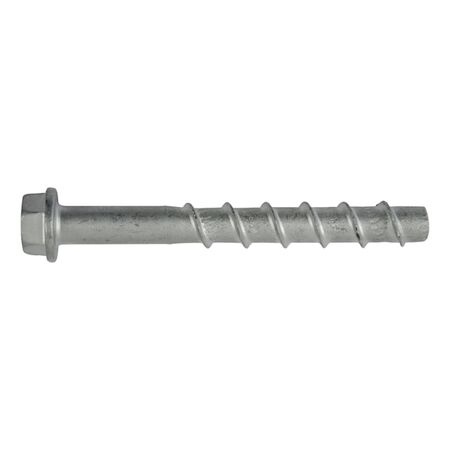

Concrete Screw with Hexagon Head | 12mm Diameter | High Load-Bearing Capacity | @Pack of 25 | by Wurth
Concrete screws with hexagon head and pressed washer are designed for high load-bearing applications in both cracked and uncracked concrete. Ideal for construction and building projects, these screws offer immediate load-bearing capacity and can be adjusted after installation, ensuring a secure and reliable fastening solution for railings and anchor plates.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 12 mm
- Anchor length: 110 mm
- Attachment heights: 10 mm, 25 mm, 45 mm
- Thread diameter: 12 mm
- Nominal drill-bit diameter: 12.0 mm
- Drill hole depths: 75 mm, 95 mm, 110 mm
- Embedding depths: 65 mm, 85 mm, 100 mm
- External drive: WS17
- Material: Steel
- Surface finish: Flake zinc silver
- Washer diameter: 23 mm
- Through-hole diameter in component: 16.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 110mm x 110mm x 23mm
- Weight: 0.15 kg
Key Features
- Suitable for individual fixing points in cracked and uncracked concrete
- Anchors in redundant non-structural systems in concrete and hollow-core prestressed concrete ceilings
- Approved for adjustments after installation
- Three effective anchorage depths for sizes 6-14
- Fastening can be adjusted up to twice after installation for sizes 8-14
- High load-bearing capacity with virtually no expansion effect
- Minimal axis and edge distances can be maintained
- Quick and easy installation with no installation torque required
- Immediate load-bearing capacity without waiting
- Recommended use of suitable impact driver from size 8
Professional Installation Requirements
- Professional installation recommended using suitable impact driver for sizes 8 and above to ensure proper anchorage and safety.
Applications
- Fixing in cracked and uncracked concrete
- Anchoring in non-structural concrete and hollow-core prestressed concrete ceilings
- Adjustable fastening for railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc flake surface provides corrosion resistance extending product life
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw W-BS/S 25 PCS is available for immediate purchase, ideal for construction and building applications requiring secure concrete fixing.
