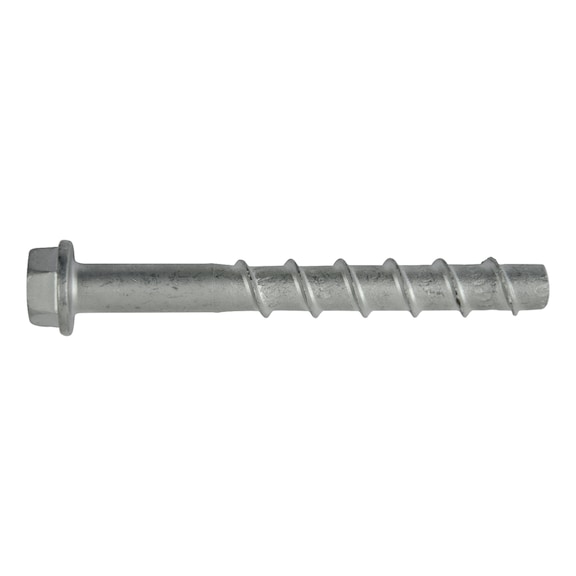

Concrete Screw with Hexagon Head | High Load Capacity | Zinc Coated | @Pack of 25 | by Wurth
Concrete screws with hexagon heads are designed for high load capacity and versatility in cracked and uncracked concrete. Ideal for construction and building applications, these screws feature a durable zinc coating for corrosion resistance and can be adjusted after installation, ensuring a secure and reliable fastening solution for various projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 10 mm
- Anchor length: 80 mm
- Attachment height (t fix 1): 25 mm
- Attachment height (t fix 2): 5 mm
- Thread diameter: 10 mm
- Nominal drill-bit diameter: 10.0 mm
- Drill hole depth (h 1.1): 65 mm
- Drill hole depth (h 1.2): 85 mm
- Embedding depth (h nom1): 55 mm
- Embedding depth (h nom2): 75 mm
- External drive: WS15
- Material: Steel
- Surface: Flake zinc silver
- Washer diameter: 20 mm
- Through-hole in component to be connected (d f): 14.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 80mm x 80mm x 20mm
- Weight: 0.05 kg
Key Features
- Individual fixing point in cracked and uncracked concrete
- Anchors in redundant non-structural systems in concrete and hollow-core prestressed concrete ceilings
- Approved for adjustments after installation
- Extremely flexible to use with three effective anchorage depths (sizes 6-14)
- Fastening can be adjusted up to twice after installation (sizes 8-14)
- High load-bearing capacity
- Virtually no expansion effect, enabling minimal axis and edge distances
- Very quick and easy installation with no installation torque required
- Immediate load-bearing capacity with no waiting
- Recommended use of a suitable impact driver from size 8
Professional Installation Requirements
- Professional installation recommended using suitable impact driver for sizes 8 and above to ensure proper anchorage and safety.
Applications
- Fixing in cracked and uncracked concrete
- Anchoring in non-structural concrete and hollow-core prestressed concrete ceilings
- Adjustable fastening for railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc flake coating provides corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty terms for details.
Available Now
Wurth Concrete Screw with Hexagon Head and Pressed-On Washer W-BS/S 25 PCS is available for immediate purchase, ideal for construction and building applications requiring secure concrete fixing.
