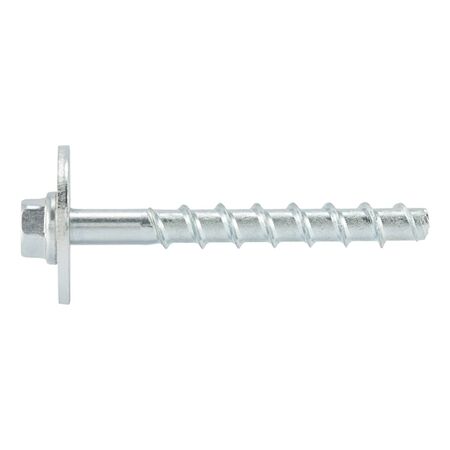

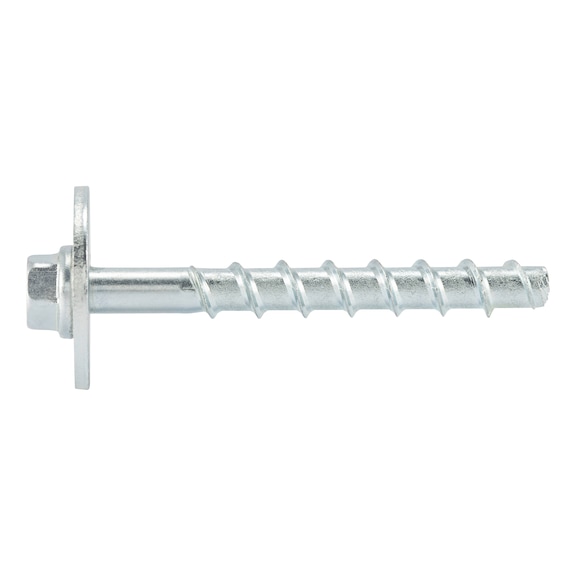

Concrete Screw with Hexagon Head | High Load Capacity | Zinc Plated | @Pack of 25 | by Wurth
Concrete screws with hexagon heads and high load capacity are perfect for mounting wood structures in concrete. Designed for professional use, these zinc-plated screws offer corrosion resistance and can be adjusted after installation for precise alignment. Ideal for both cracked and uncracked concrete, they ensure efficient and reliable anchoring in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 10 mm
- Anchor length: 200 mm
- Attachment heights: 145 mm, 125 mm, 115 mm
- Thread diameter: 12 mm
- Nominal drill-bit diameter: 10.0 mm
- Drill hole depths: 65 mm, 85 mm, 95 mm
- Embedding depths: 55 mm, 75 mm, 85 mm
- External drive: WS15
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 44 mm
- Through-hole diameter in component: 14.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 200mm x 200mm x 44mm
- Weight: 0.3 kg
Key Features
- Highest load capacities and efficient mounting
- Ideal for mounting wood structures with large washer as per DIN 440
- Extremely flexible use due to three anchoring depths
- Fastening adjustable up to twice after installation for alignment
- Very high loads with smallest spacing and edge distance due to low expansion effect
- Very fast and easy assembly, immediately load-bearing
- Zinc-plated steel for corrosion resistance
- Proof of performance with European Technical Assessment ETA-16/0043
- Fire resistance ratings R30, R60, R90, R120
- National technical approval Z-21.1-2075 as bonded screw anchor
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchoring depth and load capacity compliance.
Applications
- Mounting wood structures in concrete
- Anchoring railings and anchor plates
- Use in cracked and uncracked concrete C20/25 to C50/60
- Suitable for static, quasi-static, and seismic exposure conditions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements
- Efficient mounting reduces material waste during installation
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
Wurth Concrete Screw with Hexagon Head and Large Disc W-BS/S 25 PCS is available for immediate purchase, ideal for construction and structural mounting applications.
