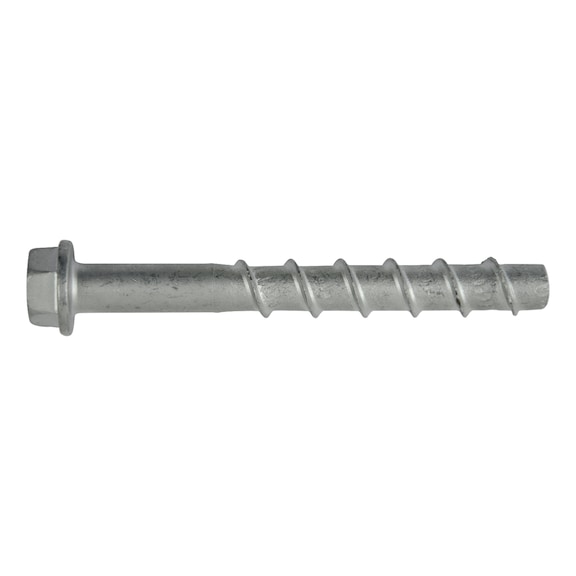

Concrete Screw with Hexagon Head & Pressed-On Washer | 10mm Size | High Load-Bearing Capacity | @Pack of 25 | by Wurth
Concrete screws with hexagon head and pressed-on washer are designed for high load-bearing applications, making them ideal for securing fixtures in both cracked and uncracked concrete. With a 10mm size and durable steel construction, these screws offer immediate load-bearing capacity and can be adjusted after installation, ensuring flexibility and reliability for construction professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 10 mm
- Anchor length: 100 mm
- Attachment heights: 45 mm, 25 mm, 15 mm
- Thread diameter: 10 mm
- Nominal drill-bit diameter: 10.0 mm
- Drill hole depths: 65 mm, 85 mm, 95 mm
- Embedding depths: 55 mm, 75 mm, 85 mm
- External drive: WS15
- Material: Steel
- Surface finish: Flake zinc silver
- Washer diameter: 20 mm
- Through-hole diameter in component: 14.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 100mm x 100mm x 20mm
- Weight: 0.1 kg
Key Features
- Individual fixing point in cracked and uncracked concrete
- Anchors in redundant non-structural systems
- Approved for adjustments after installation
- Three effective anchorage depths (sizes 6-14)
- High load-bearing capacity
- Virtually no expansion effect allowing minimal axis and edge distances
- Quick and easy installation with no installation torque required
- Immediate load-bearing capacity with no waiting
- Extremely flexible to use
- Fastening can be adjusted up to twice after installation (sizes 8-14)
Professional Installation Requirements
- Professional installation recommended using suitable impact driver from size 8 and above for optimal performance and safety.
Applications
- Fixing in cracked and uncracked concrete
- Anchoring in non-structural concrete and hollow-core prestressed concrete ceilings
- Adjustable fastening for railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Flake zinc silver surface provides corrosion resistance extending product life
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Available for immediate purchase, ideal for construction and building applications requiring secure concrete fixing.
