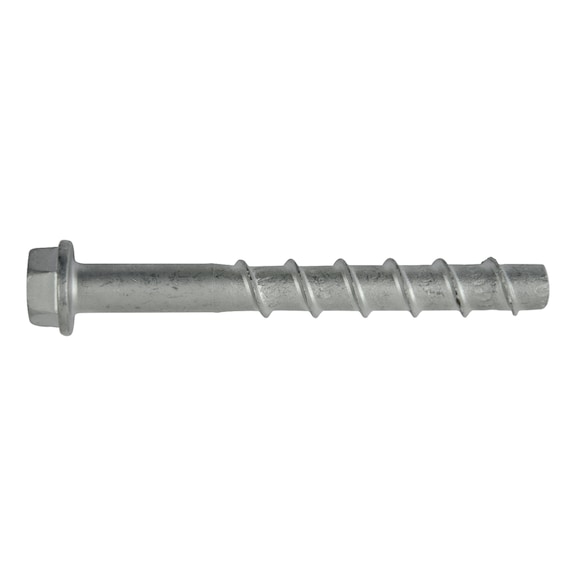

Concrete Screw with Hexagon Head & Pressed-On Washer | 6mm Anchor Size | High Load-Bearing Capacity | @Pack of 100 | by Wurth
Concrete screws with hexagon head and pressed-on washer are designed for high load-bearing applications, making them ideal for securing fixtures in both cracked and uncracked concrete. With a 6mm anchor size and durable steel construction, these screws ensure reliable fastening in non-structural systems. Their quick installation and immediate load-bearing capacity make them perfect for construction professionals seeking efficiency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 80 mm
- Attachment heights: 45 mm, 40 mm, 25 mm
- Thread diameter: 6 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- External drive: WS13
- Material: Steel
- Surface finish: Flake zinc silver
- Washer diameter: 15 mm
- Through-hole diameter in component: 8.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 80mm x 80mm x 15mm
- Weight: 0.1 kg
Key Features
- Individual fixing point in cracked and uncracked concrete
- Anchors in redundant non-structural systems
- Approved for adjustments after installation
- Three effective anchorage depths (sizes 6-14)
- Fastening can be adjusted up to twice after installation (sizes 8-14)
- High load-bearing capacity
- Virtually no expansion effect, allowing minimal axis and edge distances
- Very quick and easy installation
- No installation torque required
- Immediate load-bearing capacity with no waiting
- Recommended use of suitable impact driver from size 8
Professional Installation Requirements
- Professional installation recommended using suitable impact driver for sizes 8 and above to ensure proper anchorage and safety.
Applications
- Fixing in cracked and uncracked concrete
- Anchoring in non-structural systems in concrete and hollow-core prestressed concrete ceilings
- Adjustable fastening for railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc flake surface provides corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty terms for details.
Available Now
Available for immediate purchase. Ideal for construction and building applications requiring secure fixing in concrete.
