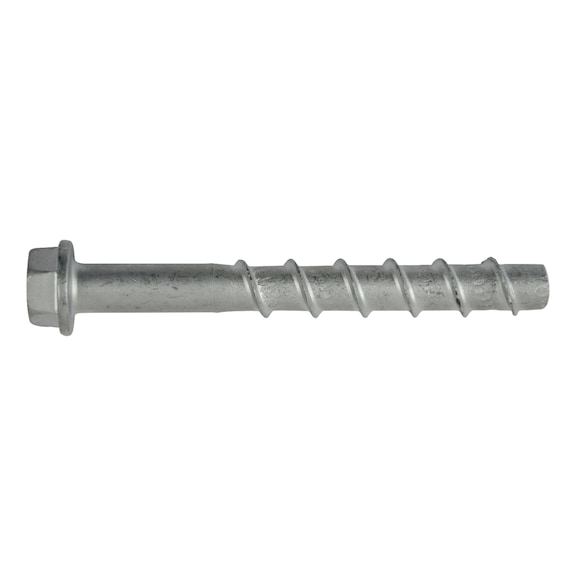

Concrete Screw with Hexagon Head & Pressed-On Washer | 6mm Anchor Size | High Load-Bearing Capacity | @Pack of 100 | by Wurth
Concrete screws with hexagon head and pressed-on washer are designed for high load-bearing applications, making them ideal for anchoring in both cracked and uncracked concrete. With a 6mm anchor size and durable steel construction, these screws ensure reliable fastening for railings and anchor plates, providing immediate load-bearing capacity without waiting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 100 mm
- Attachment heights: 65 mm, 60 mm, 45 mm
- Thread diameter: 6 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- External drive: WS13
- Material: Steel
- Surface finish: Flake zinc silver
- Washer diameter: 15 mm
- Through-hole diameter in component: 8.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 100mm x 100mm x 15mm
- Weight: 0.15 kg
Key Features
- Individual fixing point in cracked and uncracked concrete
- Anchors in redundant non-structural systems in concrete and hollow-core prestressed concrete ceilings
- Approved for adjustments after installation
- Extremely flexible to use with three effective anchorage depths (sizes 6-14)
- Fastening can be adjusted up to twice after installation (sizes 8-14)
- High load-bearing capacity
- Virtually no expansion effect, enabling minimal axis and edge distances
- Very quick and easy installation with no installation torque required
- Immediate load-bearing capacity with no waiting
- Recommended use of suitable impact driver from size 8
Professional Installation Requirements
- Professional installation recommended using appropriate tools such as impact drivers for sizes 8 and above to ensure secure anchoring.
Applications
- Fixing in cracked and uncracked concrete
- Anchoring in non-structural concrete and hollow-core prestressed concrete ceilings
- Adjustable fastening for railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Flake zinc silver surface provides corrosion resistance extending product life
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
Available for immediate purchase, ideal for construction and building applications requiring reliable concrete anchoring.
