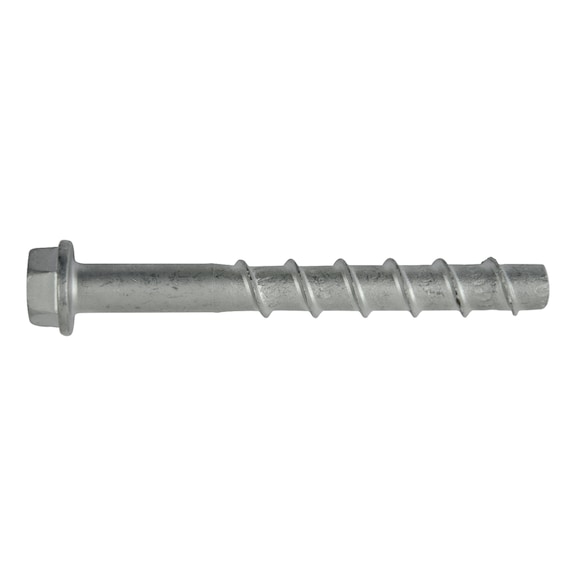

Concrete Screw with Hexagon Head & Pressed-On Washer | 8mm Diameter | Zinc Plated | @Pack of 50 | by Wurth
Concrete screws with hexagon head and pressed-on washer are perfect for securing fixtures in cracked and uncracked concrete. With an 8mm diameter and zinc plating for corrosion resistance, these screws offer high load-bearing capacity and immediate load-bearing capability. Ideal for construction and building applications, they ensure quick and easy installation without the need for installation torque.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 8 mm
- Anchor length: 100 mm
- Attachment height (t fix 1 & 2): 55 mm
- Attachment height (t fix 3): 35 mm
- Thread diameter: 8 mm
- Nominal drill-bit diameter: 8.0 mm
- Drill hole depths: 55 mm, 65 mm, 75 mm
- Embedding depths: 45 mm, 55 mm, 65 mm
- External drive: WS13
- Material: Steel
- Surface: Flake zinc silver
- Washer diameter: 16 mm
- Through-hole in component to be connected: 12.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 100mm x 100mm x 16mm
- Weight: 0.05 kg
Key Features
- Suitable for individual fixing points in cracked and uncracked concrete
- Anchors in a redundant non-structural system in concrete and hollow-core prestressed concrete ceilings
- Approved for adjustments after installation
- Extremely flexible to use with three effective anchorage depths (sizes 6-14)
- Fastening can be adjusted up to twice after installation (sizes 8-14)
- High load-bearing capacity with virtually no expansion effect
- Minimal axis and edge distances can be maintained
- Very quick and easy installation with no installation torque required
- Immediate load-bearing capacity with no waiting time
Professional Installation Requirements
- Professional installation recommended using a suitable impact driver from size 8 and above for optimal performance and safety.
Applications
- Fixing in cracked and uncracked concrete
- Anchoring in non-structural concrete and hollow-core prestressed concrete ceilings
- Adjustable fastening for railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements
- Zinc flake coating provides corrosion resistance extending product life
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Hexagon Head and Pressed-On Washer W-BS/S 50 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure concrete fixing.
