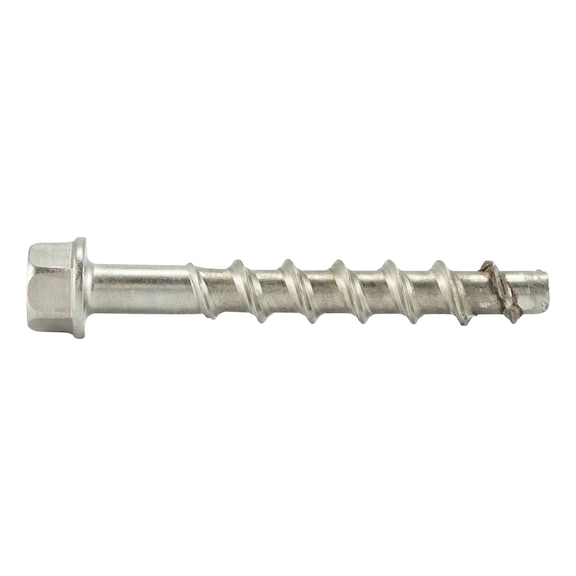

Concrete Screw with Hexagon Head W-BS A4 A4 Stainless Steel High Load Capacity Variant-2 Wurth

BRAND: Wurth
SKU: 5929221065
$197.40 List price: $248.10
25 PCS ($7.90 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Concrete screws with hexagon head W-BS A4 are designed for high load capacity and efficient mounting in concrete.
Technical Specifications
  • Anchor size: 10 mm
  • Anchor length: 120 mm
  • Attachment heights: 65 mm, 45 mm, 35 mm
  • Thread diameter: 12 mm
  • Nominal drill-bit diameter: 10.0 mm
  • Drill hole depths: 65 mm, 85 mm, 95 mm
  • Embedding depths: 55 mm, 75 mm, 85 mm
  • External drive: WS15
  • Material: Stainless steel A4
  • Surface: Plain
  • Washer diameter: 20 mm
  • Through-hole diameter: 14.0 mm
  • Head type: Hexagon head
  • Type description: W-BS A4 type S
  • Dimensions (H x L x W): 120mm x 120mm x 20mm
  • Weight: 0.15 kg
Key Features
  • Highest load capacities and efficient mounting
  • A4 stainless steel for corrosion resistance
  • Extremely flexible with three anchorage depths
  • Fastening adjustable up to twice after installation
  • Very high loads with smallest spacing and edge distance
  • Very low expansion effect
  • Very fast and easy assembly, immediately load-bearing
  • Proof of performance with European Technical Assessments ETA-16/0043 and ETA-16/0128
  • Fire resistance ratings R30, R60, R90, R120
  • DIBt National technical approval as bonded screw anchor
Professional Installation Requirements
  • Installation should be performed by a qualified professional following the assembly guide to ensure correct anchorage and load capacity.
Applications
  • Fastening metal structures in concrete
  • Anchoring railings and anchor plates
  • Suitable for cracked and uncracked concrete
  • Use in hollow-core prestressed concrete ceilings
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable stainless steel material reduces need for frequent replacements
  • Efficient mounting reduces waste and installation time
Warranty Information

Warranty as per Wurth standard terms and conditions.

Available Now

Wurth Concrete Screw with Hexagon Head W-BS/A4 25 PCS is available for immediate purchase, ideal for construction and structural fastening applications.
