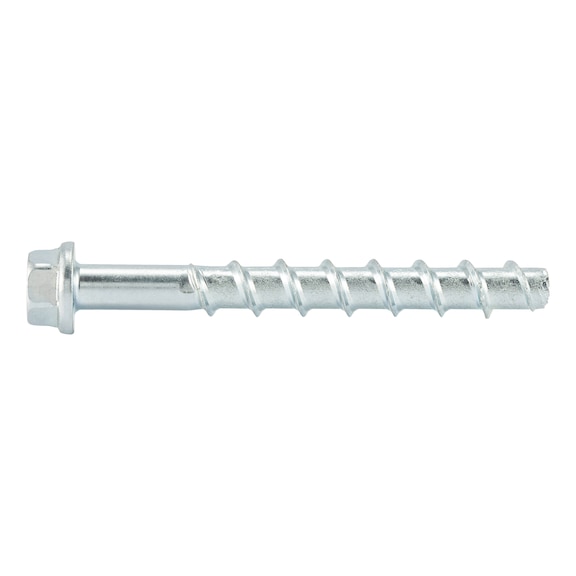

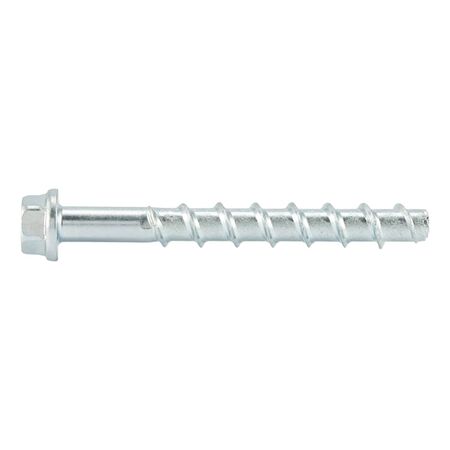

Concrete Screw with Hexagon Head | Zinc Plated Steel | 5mm Anchor Size | 40mm Length | @Pack of 100 | by Wurth
Concrete screws with hexagon heads are designed for reliable fastening in concrete and masonry applications. With a 5mm anchor size and 40mm length, these zinc-plated steel screws ensure high load capacity and efficient installation. Ideal for professionals, they offer flexibility with adjustable anchorage depths and immediate load-bearing capacity, making them perfect for aligning railings and securing metal structures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 5 mm
- Anchor length: 40 mm
- Attachment height: 5 mm
- Thread diameter: 6.5 mm
- Nominal drill-bit diameter: 5.0 mm
- Drill hole depth: 40 mm
- Embedding depth: 35 mm
- External drive: WS10
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 12.5 mm
- Through-hole diameter: 7.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Anchor size [mm]: 6
- Dimensions (H x L x W): 40mm x 40mm x 12.5mm
- Weight: 0.5 kg
Key Features
- Highest loads and efficient installation
- Ideal for fastening metal structures, zinc-plated steel
- Extremely flexible application with up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation (size 6-14)
- Very high loads with very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions and relevant safety standards to ensure proper anchorage and load capacity.
Applications
- Fastening metal structures
- Anchorage in concrete and masonry
- Aligning railings or anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces corrosion and extends product life, minimizing waste
- Efficient installation reduces energy and resource use on site
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS/S 100 PCS is available for immediate purchase, ideal for construction and metal fastening applications.
