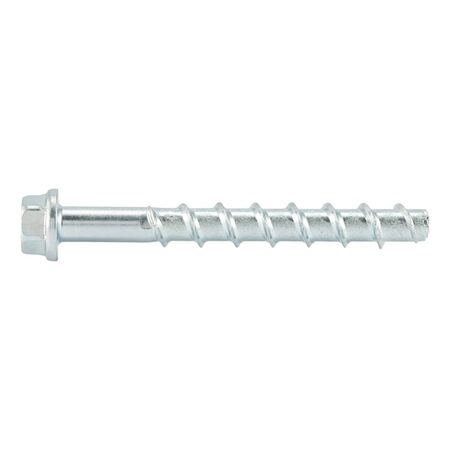

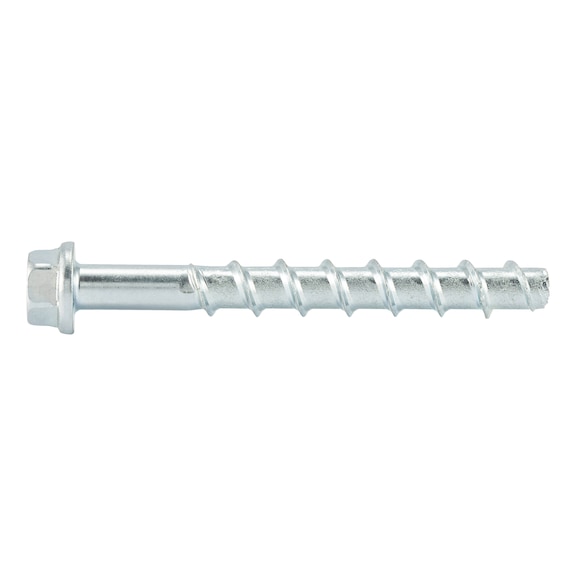

Concrete Screw with Hexagon Head | Zinc Plated Steel | 6mm Anchor Size | @Pack of 100 | by Wurth
Concrete screws with hexagon heads are designed for reliable fastening in concrete and masonry applications. With a 6mm anchor size and zinc-plated steel construction, these screws offer exceptional load-bearing capacity and corrosion resistance. Ideal for professionals, they allow for flexible anchorage depths and quick installation, making them perfect for aligning railings and securing metal structures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 60 mm
- Attachment heights: 25 mm, 20 mm, 5 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- External drive: WS13
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 15 mm
- Through-hole diameter: 8.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 60mm x 60mm x 6mm
- Weight: 0.1 kg
Key Features
- Highest loads and efficient installation
- Ideal for fastening metal structures, zinc-plated steel
- Extremely flexible application with up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation (size 6-14)
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions and relevant safety standards.
Applications
- Fastening metal structures
- Anchorage in concrete and masonry
- Aligning railings or anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS/S 100 PCS is available for immediate purchase, ideal for construction and metal fastening applications.
