Trade Discount 20%

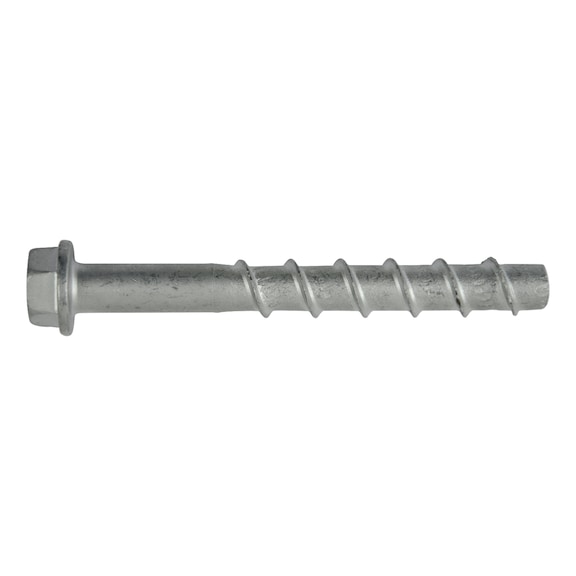

Concrete Screw with Hexagon Head | Zinc Plated | 8mm Diameter | High Load-Bearing Capacity | @Pack of 50 | by Wurth
Concrete screws with hexagon heads are designed for reliable anchoring in both cracked and uncracked concrete. With an 8mm diameter and zinc plating for corrosion resistance, these screws offer high load-bearing capacity and can be adjusted after installation. Ideal for construction and building applications, they ensure secure fastening for railings and anchor plates, making them a must-have for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 8 mm
- Anchor length: 80 mm
- Attachment heights: 35 mm, 25 mm, 15 mm
- Thread diameter: 8 mm
- Nominal drill-bit diameter: 8.0 mm
- Drill hole depths: 55 mm, 65 mm, 75 mm
- Embedding depths: 45 mm, 55 mm, 65 mm
- External drive: WS13
- Material: Steel
- Surface finish: Flake zinc silver
- Washer diameter: 16 mm
- Through-hole diameter in component: 12.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 80mm x 80mm x 16mm
- Weight: 0.05 kg
Key Features
- Suitable for individual fixing points in cracked and uncracked concrete
- Anchors in redundant non-structural systems in concrete and hollow-core prestressed concrete ceilings
- Approved for adjustments after installation
- Three effective anchorage depths (sizes 6-14) and a large variety of types
- Fastening can be adjusted up to twice after installation (sizes 8-14)
- High load-bearing capacity
- Virtually no expansion effect, allowing minimal axis and edge distances
- Very quick and easy installation with no installation torque required
- Immediate load-bearing capacity with no waiting time
- Recommended use of a suitable impact driver from size 8
Professional Installation Requirements
- Professional installation recommended using a suitable impact driver for sizes 8 and above to ensure proper anchorage and safety.
Applications
- Fixing in cracked and uncracked concrete
- Anchoring in non-structural concrete and hollow-core prestressed concrete ceilings
- Adjustable fastening for railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements
- Zinc flake coating provides corrosion resistance, extending product life and reducing waste
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
Available for immediate purchase, ideal for construction and building applications requiring secure concrete fixing.
