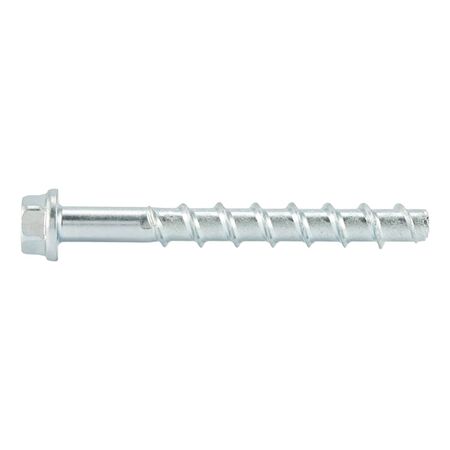

Concrete Screw with Hexagon Head | Zinc Plated Steel | High Load Capacity | @Pack of 100 | by Wurth
Concrete screws with hexagon heads are designed for high load capacity and efficient installation, making them ideal for fastening metal structures to concrete and masonry. Made from durable zinc-plated steel, these screws offer excellent corrosion resistance and can be adjusted after installation for precise alignment. Perfect for construction and industrial applications, they ensure reliable anchorage in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 5 mm
- Anchor length: 50 mm
- Attachment height: 15 mm
- Thread diameter: 6.5 mm
- Nominal drill-bit diameter: 5.0 mm
- Drill hole depth: 40 mm
- Embedding depth: 35 mm
- External drive: WS10
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 12.5 mm
- Through-hole diameter: 7.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 50mm x 50mm x 12.5mm
- Weight: 0.1 kg
Key Features
- Highest loads and efficient installation
- Ideal for fastening metal structures, zinc-plated steel
- Extremely flexible application with up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation for alignment
- Very high load capacity
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchorage and load capacity.
Applications
- Fastening metal structures to concrete and masonry
- Anchorage in concrete and masonry for construction and industrial use
- Ideal for securing railings, anchor plates, and other fixtures
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces corrosion and extends product life, minimizing replacement waste
- Efficient installation reduces construction time and resource use
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS/S 100 PCS is available for immediate purchase, ideal for construction and industrial fastening applications.
