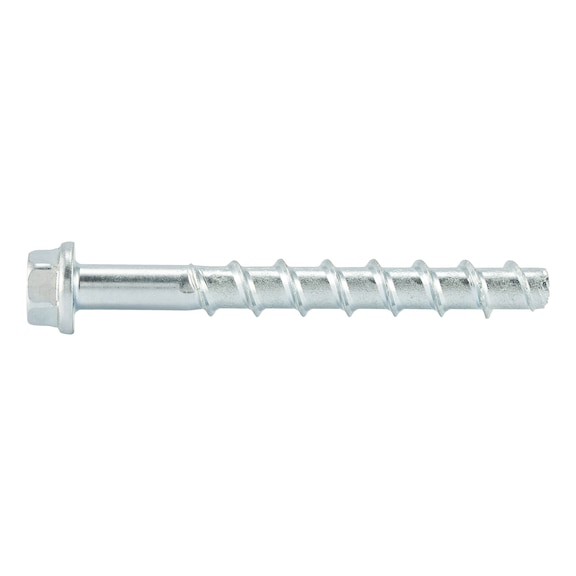

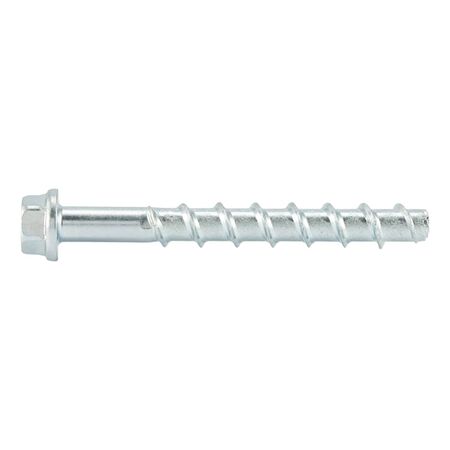

Concrete Screw with Hexagon Head W-BS/S | Zinc Plated Steel | High Load Capacity | @Pack of 100 | by Wurth
Concrete screws with hexagon head W-BS/S are designed for high load capacity and efficient installation. Ideal for fastening metal structures in concrete and masonry, these zinc-plated steel screws offer flexibility with multiple anchorage depths. Perfect for professionals seeking reliable performance in construction and alignment tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 5 mm
- Anchor length: 60 mm
- Attachment height: 25 mm
- Thread diameter: 6.5 mm
- Nominal drill-bit diameter: 5.0 mm
- Drill hole depth: 40 mm
- Embedding depth: 35 mm
- External drive: WS10
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 12.5 mm
- Through-hole diameter: 7.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Anchor size [mm]: 6
- Dimensions (H x L x W): 60mm x 60mm x 12.5mm
- Weight: 0.5 kg
Key Features
- Highest loads and efficient installation
- Ideal for fastening metal structures, zinc-plated steel
- Extremely flexible application with up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation (size 6-14)
- Very high loads with very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following manufacturer instructions and relevant safety standards.
Applications
- Fastening metal structures
- Anchorage in concrete and masonry
- Aligning railings or anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS/S 100 PCS is available now for immediate purchase. Ideal for construction and metal fastening applications.
