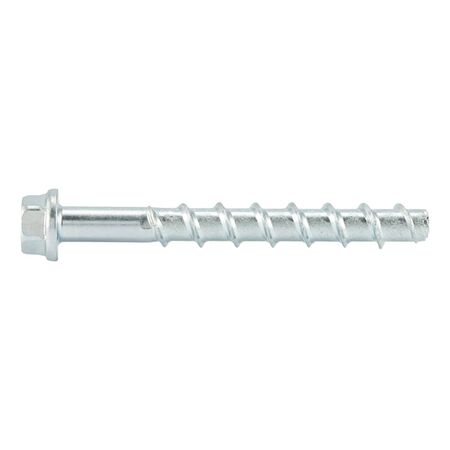

Concrete Screw with Hexagon Head | Zinc Plated Steel | High Load Capacity | @Pack of 100 | by Wurth
Concrete screws with hexagon head are designed for high load capacity and efficient installation, making them ideal for fastening metal structures to concrete and masonry. Made from zinc-plated steel, these screws offer excellent corrosion resistance and immediate load-bearing capacity after installation, ensuring reliability in both cracked and uncracked concrete applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 50 mm
- Attachment height (t fix 1): 15 mm
- Attachment height (t fix 2): 10 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depth (h 1.1): 40 mm
- Drill hole depth (h 1.2): 45 mm
- Embedding depth (h nom1): 35 mm
- Embedding depth (h nom2): 40 mm
- External drive: WS13
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 15 mm
- Through-hole in component to be connected: 8.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 50mm x 50mm x 6mm
- Weight: 0.1 kg
Key Features
- Highest loads and efficient installation
- Zinc-plated steel for corrosion resistance
- Up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation (size 6-14)
- Very low spacing and edge distances due to low expansion effect
- Immediate load-bearing capacity after installation
- Proof of performance with European Technical Assessments ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions and relevant safety standards to ensure proper anchorage and load capacity.
Applications
- Fastening metal structures to concrete and masonry
- Anchorage in cracked and uncracked concrete
- Suitable for seismic and fire resistance applications
- Ideal for aligning railings or anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Efficient installation reduces waste and energy use on site
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS/S 100 PCS is available for immediate purchase, ideal for construction and building fastening applications.
