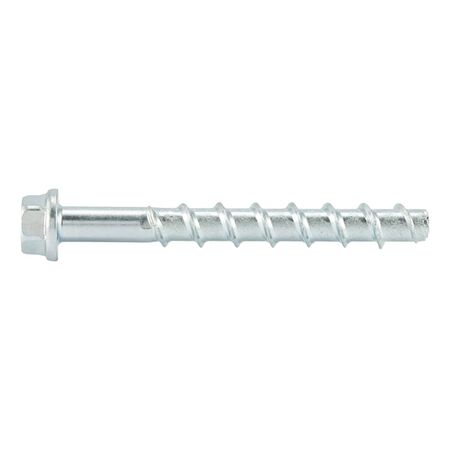

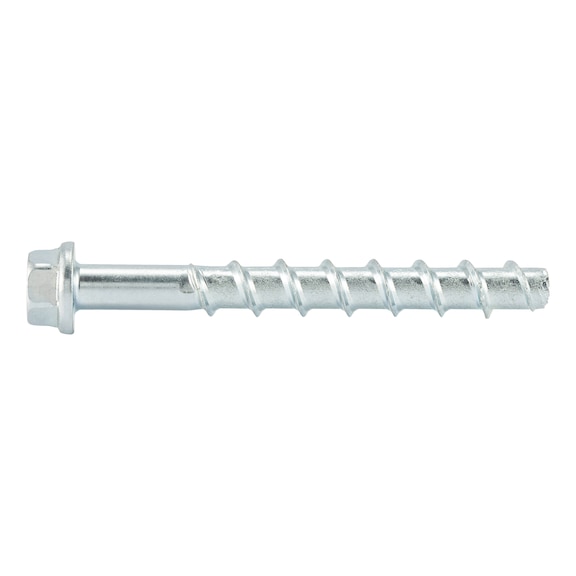

Concrete Screw with Hexagon Head | Zinc Plated Steel | High Load Capacity | @Pack of 100 | by Wurth
Concrete screws with hexagon heads are designed for high load capacity and efficient installation, making them ideal for fastening metal structures in concrete and masonry. Made from durable zinc-plated steel, these screws offer flexibility with multiple anchorage depths and immediate load-bearing capacity, ensuring reliable performance in construction and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 80 mm
- Attachment heights: 45 mm, 40 mm, 25 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- External drive: WS13
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 15 mm
- Through-hole diameter: 8.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 80mm x 80mm x 15mm
- Weight: 0.5 kg
Key Features
- Highest loads and efficient installation
- Ideal for fastening metal structures, zinc-plated steel
- Extremely flexible application with up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation (size 6-14)
- Very high loads with very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchorage and load capacity.
Applications
- Fastening metal structures
- Anchorage in concrete and masonry
- Aligning railings or anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces corrosion and extends product life, minimizing waste
- Efficient installation reduces construction time and resource use
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS/S 100 PCS is available now for immediate purchase. Ideal for construction and industrial fastening applications.
