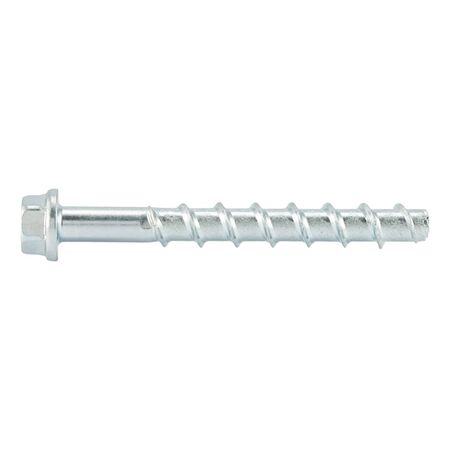

Concrete Screw with Hexagon Head | Zinc Plated Steel | High Load Capacity | @Pack of 50 | by Wurth
Concrete screws with hexagon heads are designed for high load capacity and efficient installation, making them ideal for fastening metal structures to concrete and masonry. With a durable zinc-plated steel construction, these screws offer excellent corrosion resistance and immediate load-bearing capacity, perfect for construction and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 8 mm
- Anchor length: 50 mm
- Attachment height: 5 mm
- Thread diameter: 10 mm
- Nominal drill-bit diameter: 8.0 mm
- Drill hole depth: 55 mm
- Embedding depth: 45 mm
- External drive: WS13
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 16 mm
- Through-hole in component: 12.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 50mm x 50mm x 16mm
- Weight: 0.1 kg
Key Features
- Highest loads and efficient installation
- Ideal for fastening metal structures, zinc-plated steel
- Extremely flexible application with up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation for alignment
- Very high load capacity
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchorage and load capacity.
Applications
- Fastening metal structures to concrete and masonry
- Anchorage in concrete and masonry for construction and industrial use
- Suitable for securing railings, anchor plates, and similar fixtures
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
- Efficient installation reduces waste and energy use on site
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
Wurth Concrete Screw with Hexagon Head W-BS/S 50 PCS is available for immediate purchase, ideal for construction and industrial fastening applications.
