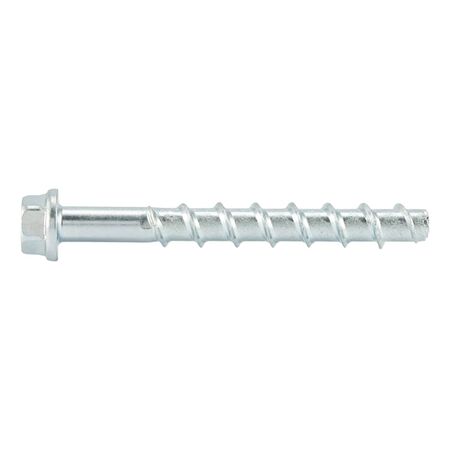

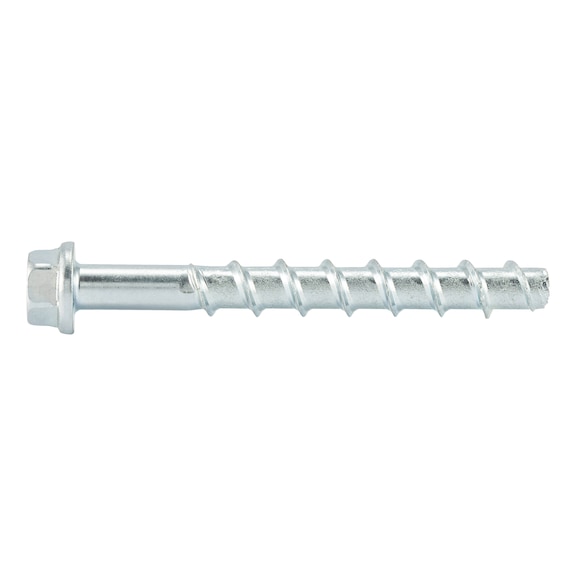

Concrete Screw with Hexagon Head | Zinc-Plated Steel | High Load Capacity & Fire Resistant | @Pack of 50 | by Wurth
Concrete screws with hexagon heads are designed for high load applications, featuring zinc-plated steel for superior corrosion resistance and fire ratings up to R120. Ideal for fastening metal structures to concrete and masonry, these screws ensure efficient installation and immediate load-bearing capacity, making them perfect for both static and seismic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 60mm x 60mm x 16mm
- Weight: 0.15 kg
Key Features
- Highest loads and efficient installation
- Zinc-plated steel for corrosion resistance
- Extremely flexible application with up to three effective anchorage depths (size 6-14)
- Fastening adjustable up to two times after installation (size 6-14)
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of performance with European Technical Assessments ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
- Suitable for static, quasi-static, and seismic actions
Professional Installation Requirements
- Installation should be performed by qualified professionals following the provided installation instructions to ensure safety and performance.
Applications
- Fastening metal structures to concrete and masonry
- Anchorage in cracked and uncracked concrete
- Suitable for seismic and fire-resistant applications
- Ideal for aligning railings and anchor plates
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Efficient installation reduces waste and energy use on site
Warranty Information
Warranty terms as per Wurth standard product warranty policies.
Available Now
The Wurth Concrete Screw with Hexagon Head W-BS/S 50 PCS is available now for immediate purchase. Ideal for construction and industrial fastening applications requiring high load and fire resistance.
