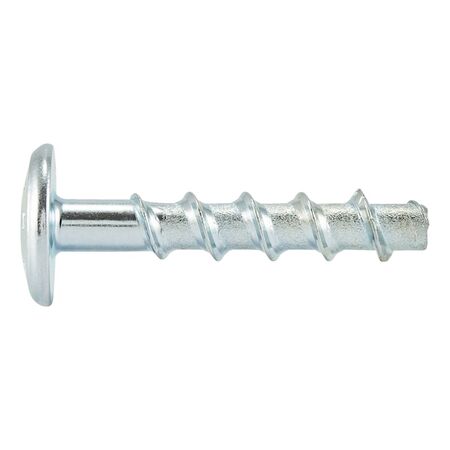

Concrete Screw with Large Pan Head | Zinc Plated Steel | High Load Capacity | @Pack of 100 | by Wurth
Concrete screws with large pan heads are designed for high load capacity fastening in concrete and masonry. Made from zinc-plated steel, these screws offer excellent corrosion resistance and can be adjusted up to two times after installation for precise alignment. Ideal for construction projects requiring reliable anchorage, they ensure immediate load-bearing capacity and compliance with fire resistance ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 40 mm
- Attachment height: 5 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depth: 40 mm
- Embedding depth: 35 mm
- Internal drive: TX30
- Material: Steel
- Surface: Zinc plated
- Head diameter: 18 mm
- Through-hole diameter: 8.0 mm
- Head type: Pan head
- Type description: W-BS type LP
- Dimensions (H x L x W): 40mm x 40mm x 18mm
- Weight: 0.5 kg
Key Features
- Extra-large pan head with large contact surface
- Zinc-plated steel for corrosion resistance
- Designed for fastening mounting rails
- Up to three effective anchorage depths for flexible application
- Fastening adjustable up to two times after installation for alignment
- High load capacity with very low spacing and edge distances
- Very fast and easy installation with immediate load-bearing capacity
- Proof of performance with European Technical Assessments ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
- Suitable for static, quasi-static, and seismic actions
Professional Installation Requirements
- Installation should be performed by qualified professionals following the manufacturer's instructions to ensure proper anchorage and load capacity.
Applications
- Fastening and mounting rails in concrete and masonry
- Anchorage in cracked and uncracked concrete
- Suitable for seismic and fire resistance applications
- Use in construction and building projects requiring high load capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Efficient fastening reduces material waste during installation
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Large Pan Head W-BS/S 100 PCS is available for immediate purchase, ideal for construction and masonry fastening applications.
