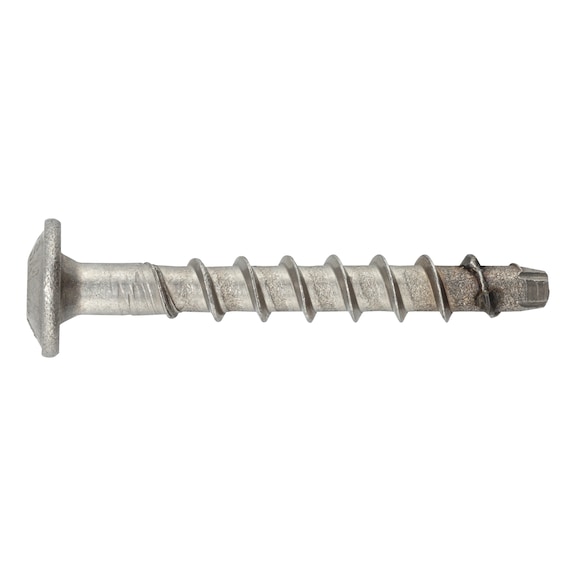

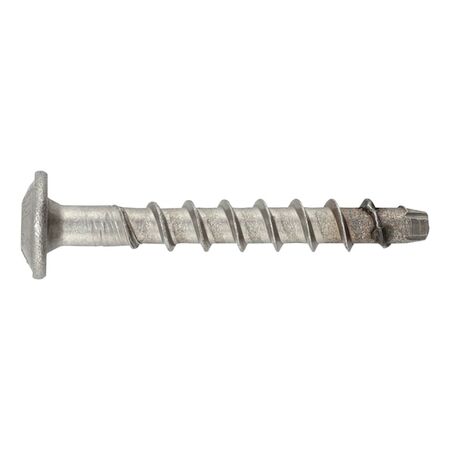

Concrete Screw with Pan Head W-BS 2/A4 | 6mm Anchor Size | A4 Stainless Steel | @Pack of 100 | by Wurth
Concrete screws with pan head W-BS 2/A4 are designed for high working loads and easy installation, making them ideal for fastening mounting rails and securing panel materials in concrete. Made from durable A4 stainless steel, these screws feature a new thread geometry for smooth screwing and greater efficiency, ensuring reliable performance in both cracked and non-cracked concrete applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 100 mm
- Attachment heights: 65 mm, 55 mm, 45 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depths: 40 mm, 50 mm, 60 mm
- Embedding depths: 35 mm, 45 mm, 55 mm
- Internal drive: TX30
- Material: Stainless steel A4
- Surface: Plain
- Head diameter: 15 mm
- Through-hole diameter in component: 8 mm
- Head type: Pan head
- Dimensions (H x L x W): 100mm x 100mm x 15mm
- Weight: 0.2 kg
Key Features
- High working loads and easy installation
- Made from A4 stainless steel for durability
- New thread geometry ensures smooth screwing and greater efficiency
- Fastest type of fastening for medium loads
- Three effective anchorage depths for flexible application
- Attachments can be adjusted up to twice retrospectively
- Minimum spacing and edge distances due to very low expansion effect
- Proof of Performance with European technical assessment ETA-22/0123
- Suitable for cracked and non-cracked concrete
- Seismic effect performance category C1
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions and observing minimum spacing and edge distances for safety and performance.
Applications
- Fastening mounting rails in concrete
- Securing panel materials
- Fixing fire-protection panels in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant stainless steel A4, increasing product lifespan and reducing replacement waste
- Efficient installation reduces construction time and resource use
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Concrete Screw with Pan Head W-BS 2/A4 Type P 100 PCS is available for immediate purchase, ideal for construction and building fastening applications.
