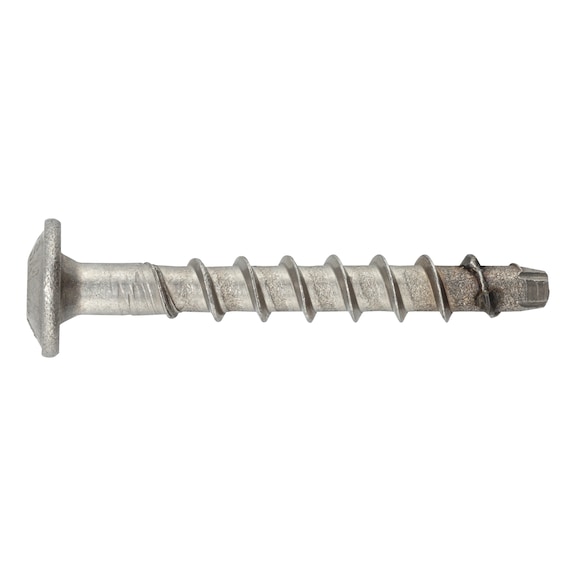

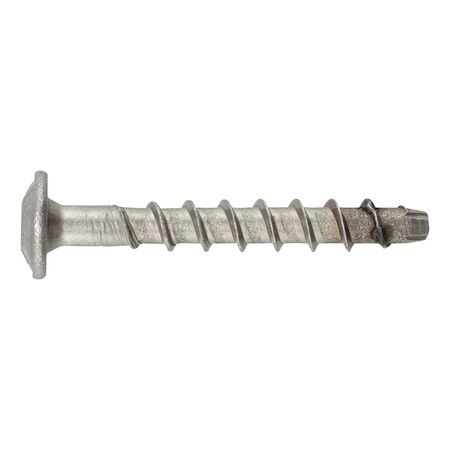

Concrete Screw with Pan Head W-BS 2 A4 Type P A4 Stainless Steel High Working Loads Variant-1 Wurth
Concrete screws with pan head W-BS 2 A4 Type P are designed for high working loads and easy installation
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 50 mm
- Attachment height (t fix 1): 15 mm
- Attachment height (t fix 2): 5 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depth (h 1.1): 40 mm
- Drill hole depth (h 1.2): 50 mm
- Embedding depth (h nom1): 35 mm
- Embedding depth (h nom2): 45 mm
- Internal drive: TX30
- Material: Stainless steel A4
- Surface: Plain
- Head diameter: 15 mm
- Through-hole in component to be connected: 8 mm
- Head type: Pan head
- Dimensions (H x L x W): 50mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- High working loads and easy installation
- Made from A4 stainless steel for durability
- New thread geometry ensures smooth screwing and greater efficiency
- Fastest type of fastening for medium loads
- Three effective anchorage depths for flexible application
- Attachments can be adjusted up to twice retrospectively
- Minimum spacing and edge distances due to very low expansion effect
- Proof of Performance with European technical assessment ETA-22/0123
- Suitable for cracked and non-cracked concrete
- Seismic effect performance category C1
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions and observing minimum spacing and edge distances.
Applications
- Fastening mounting rails in concrete
- Securing panel materials
- Fixing fire-protection panels in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant stainless steel A4, increasing product lifespan and reducing replacement waste
- Efficient installation reduces construction time and energy use
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Concrete Screw with Pan Head W-BS 2/A4 Type P 100 PCS is available now for immediate purchase. Ideal for construction and building applications requiring reliable concrete fastening.
