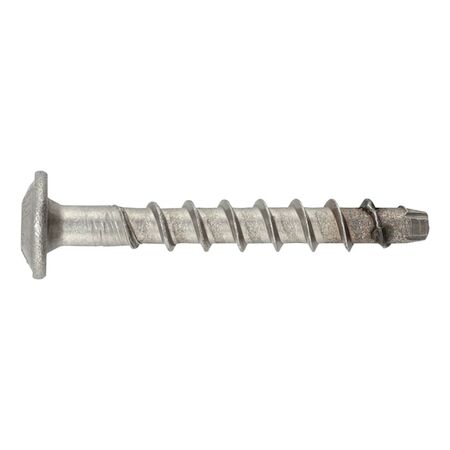

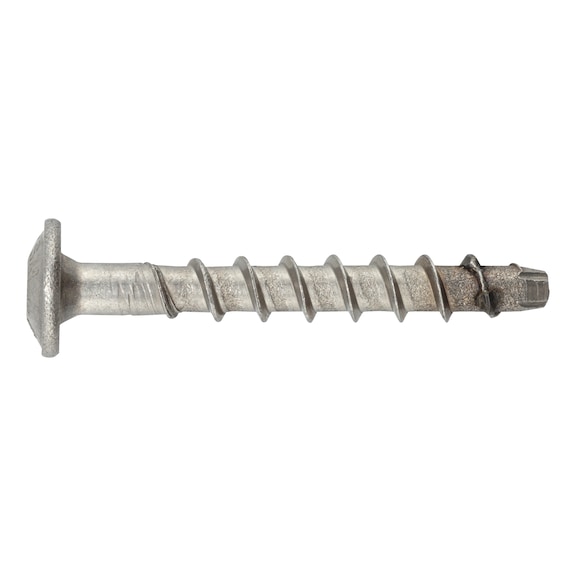

Concrete Screw with Pan Head W-BS 2/A4 Type P | A4 Stainless Steel | High Working Loads | @Pack of 100 | by Wurth
Concrete screws with pan head W-BS 2/A4 Type P are designed for high working loads and easy installation, making them ideal for fastening mounting rails and securing panel materials in concrete. Made from durable A4 stainless steel, these screws ensure long-lasting performance and are suitable for both cracked and non-cracked concrete applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 80 mm
- Attachment heights: 45 mm, 35 mm, 25 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depths: 40 mm, 50 mm, 60 mm
- Embedding depths: 35 mm, 45 mm, 55 mm
- Internal drive: TX30
- Material: Stainless steel A4
- Surface: Plain
- Head diameter: 15 mm
- Through-hole diameter: 8 mm
- Head type: Pan head
- Dimensions (H x L x W): 80mm x 80mm x 15mm
- Weight: 0.3 kg
Key Features
- High working loads and easy installation
- Made from A4 stainless steel for durability
- New thread geometry ensures smooth screwing and greater efficiency
- Fastest type of fastening for medium loads
- Three effective anchorage depths for flexible application
- Attachments can be adjusted up to twice retrospectively
- Minimum spacing and edge distances due to very low expansion effect
- Proof of Performance with European technical assessment ETA-22/0123
- Suitable for cracked and non-cracked concrete
- Seismic effect performance category C1
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions and observing minimum spacing and edge distances.
Applications
- Fastening mounting rails in concrete
- Securing panel materials
- Fixing fire-protection panels in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- Efficient installation reduces construction time and resource use
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Pan Head W-BS 2/A4 Type P 100 PCS is available now for immediate purchase. Ideal for construction and building applications requiring reliable concrete fastening.
