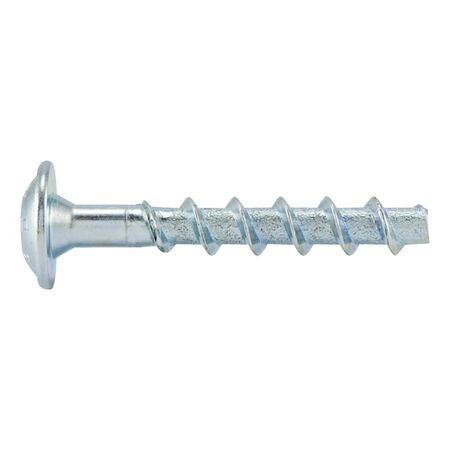

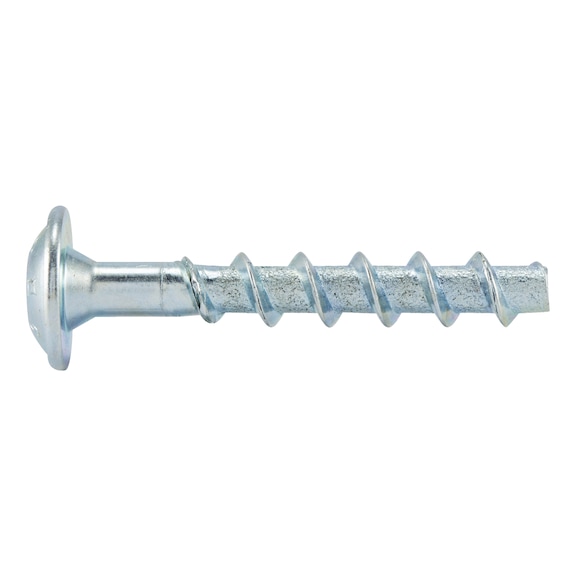

Concrete Screw with Pan Head W-BS/S | Zinc Plated Steel | 5mm Anchor Size | 60mm Length | @Pack of 100 | by Wurth
Concrete screws with pan head W-BS/S are designed for secure fastening in concrete and masonry, featuring a 5mm anchor size and 60mm length. Made from durable zinc-plated steel, these screws offer high admissible loads and can be adjusted after installation for perfect alignment. Ideal for mounting rails, panel materials, and fire-protection panels, they ensure quick and easy installation with immediate load-bearing capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 5 mm
- Anchor length: 60 mm
- Attachment height: 25 mm
- Thread diameter: 6.5 mm
- Nominal drill-bit diameter: 5.0 mm
- Drill hole depth: 40 mm
- Embedding depth: 35 mm
- Internal drive: TX30
- Material: Steel
- Surface: Zinc plated
- Head diameter: 14 mm
- Through-hole diameter: 7.0 mm
- Head type: Pan head
- Type description: W-BS type P
- Dimensions (H x L x W): 60mm x 60mm x 14mm
- Weight: 0.1 kg
Key Features

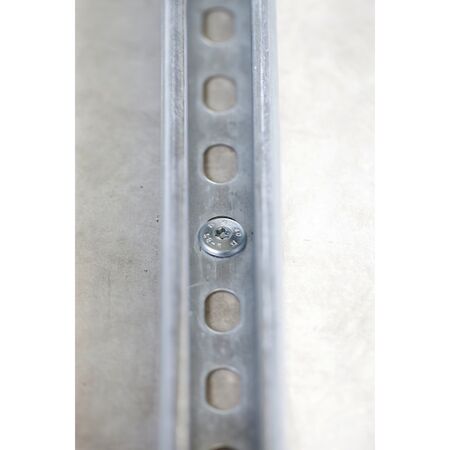

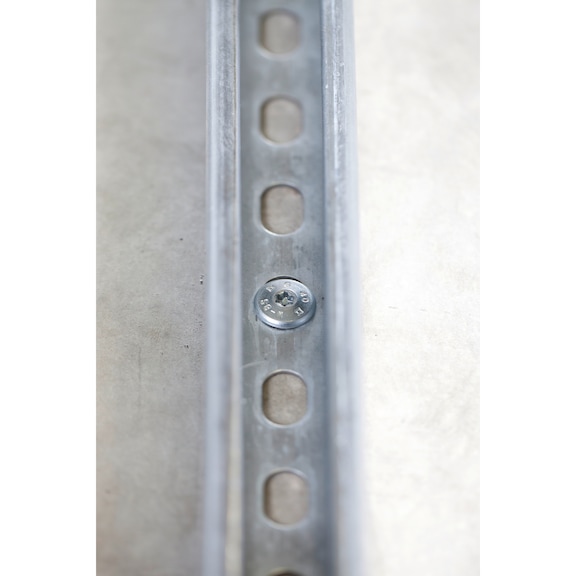

- Ideal for fastening and mounting rails, panel materials, or fire-protection panels
- Zinc-plated steel for durability
- Extremely flexible application with up to three effective anchorage depths

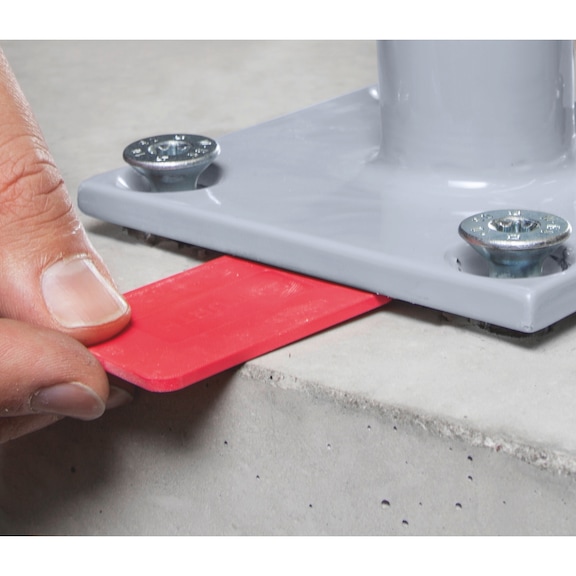

- Fastening can be adjusted up to twice after installation for alignment
- High admissible loads
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
Professional Installation Requirements
- Professional installation recommended to ensure correct anchorage and load capacity, following installation instructions.
Applications
- Fastening and mounting rails
- Panel materials
- Fire-protection panels
- Anchorage in concrete and masonry
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Efficient fastening reduces need for additional materials
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Concrete Screw with Pan Head W-BS/S 100 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure anchorage in concrete and masonry.
