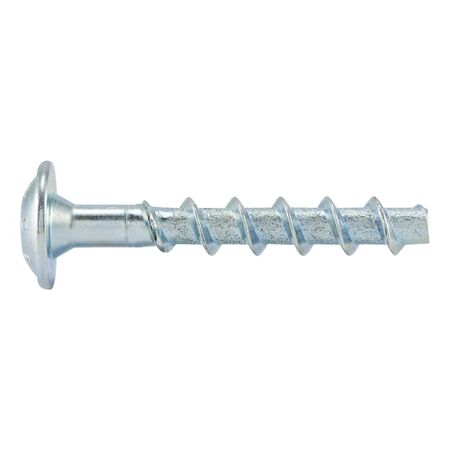

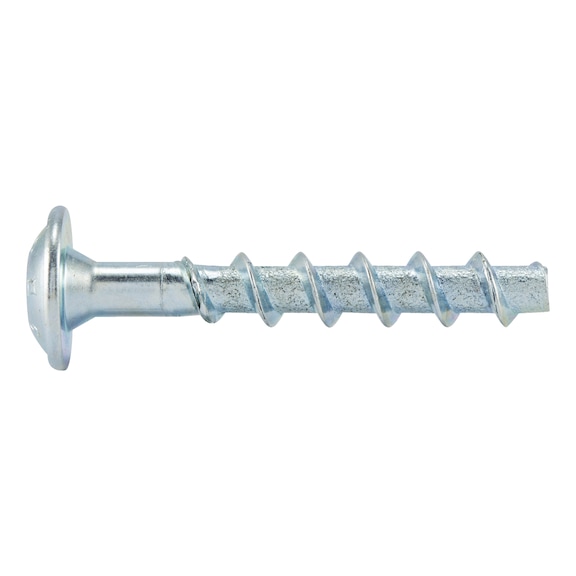

Concrete Screw with Pan Head W-BS/S | Zinc Plated Steel | 6mm Anchor Size | 60mm Length | @Pack of 100 | by Wurth
Concrete screws with pan head W-BS/S are designed for secure fastening in concrete and masonry, featuring a 6mm anchor size and 60mm length. Made from durable zinc-plated steel, these screws offer high admissible loads and can be adjusted after installation for precise alignment. Ideal for mounting rails and fire-protection panels, they ensure immediate load-bearing capacity and compliance with structural design standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 60 mm
- Attachment heights: 25 mm, 20 mm, 5 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- Internal drive: TX30
- Material: Steel
- Surface: Zinc plated
- Head diameter: 15 mm
- Through-hole diameter: 8.0 mm
- Head type: Pan head
- Type description: W-BS type P
- Dimensions (H x L x W): 60mm x 60mm x 15mm
- Weight: 0.2 kg
Key Features

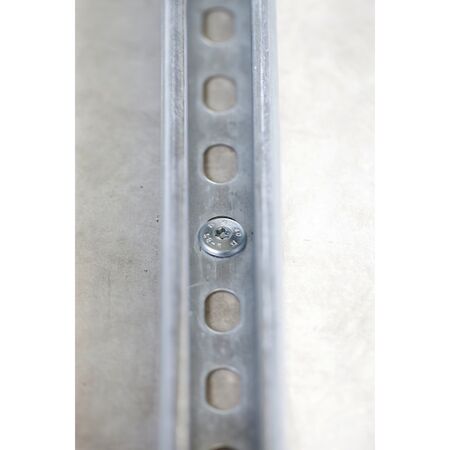

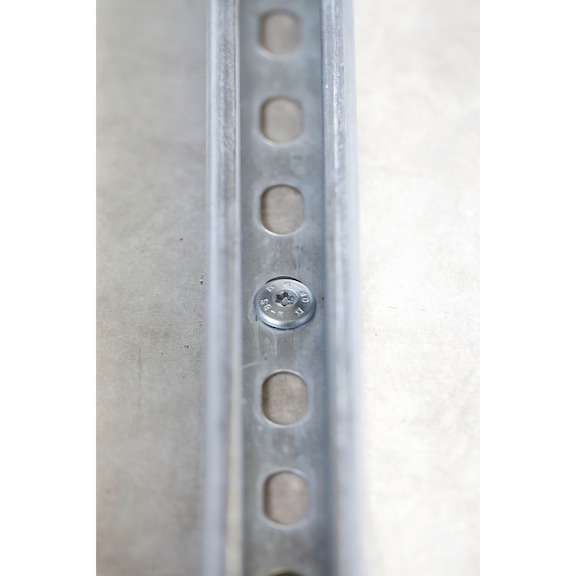

- Ideal for fastening and mounting rails, panel materials, or fire-protection panels
- Zinc-plated steel construction
- Suitable for anchorage in concrete and masonry
- Extremely flexible application with up to three effective anchorage depths

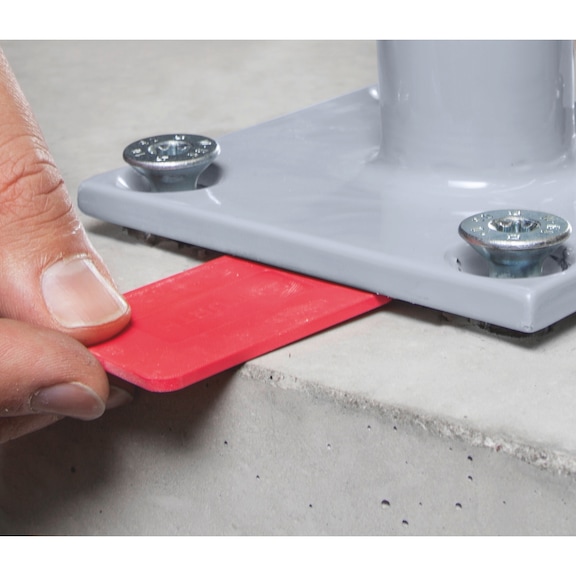

- Fastening can be adjusted up to twice after installation for alignment
- High admissible loads
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessments for cracked and uncracked concrete and masonry
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by a qualified professional following the manufacturer's instructions to ensure proper anchorage and load capacity.
Applications
- Fastening and mounting rails
- Panel materials installation
- Fire-protection panels anchorage
- Anchorage in concrete and masonry
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces corrosion and extends product life, minimizing replacement waste
- Efficient fastening reduces material waste during installation
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Concrete Screw with Pan Head W-BS/S 100 PCS is available for immediate purchase, ideal for construction and building applications requiring secure concrete and masonry fastening.
