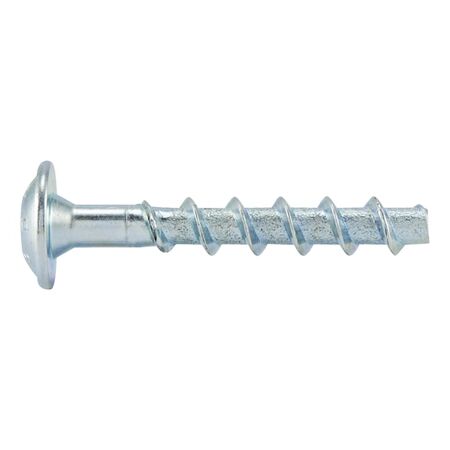

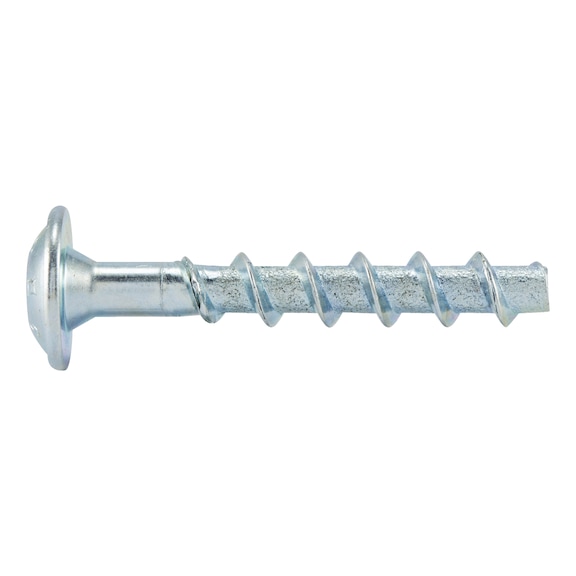

Concrete Screw with Pan Head W-BS/S | Zinc-Plated Steel | 6mm Anchor Size | 80mm Length | @Pack of 100 | by Wurth
Concrete screws with pan head W-BS/S are designed for secure anchorage in concrete and masonry, featuring a durable zinc-plated steel construction. Ideal for fastening and mounting rails, panel materials, or fire-protection panels, these screws offer flexibility with multiple anchorage depths and can be adjusted post-installation for precise alignment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 80 mm
- Attachment heights: 45 mm, 40 mm, 25 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- Internal drive: TX30
- Material: Steel
- Surface: Zinc plated
- Head diameter: 15 mm
- Through-hole diameter: 8.0 mm
- Head type: Pan head
- Type description: W-BS type P
- Dimensions (H x L x W): 80mm x 80mm x 15mm
- Weight: 0.5 kg
Key Features
- Ideal for fastening and mounting rails, panel materials, or fire-protection panels
- Zinc-plated steel for durability
- Suitable for anchorage in concrete and masonry
- Extremely flexible application with up to three effective anchorage depths
- Fastening can be adjusted up to twice after installation for alignment
- High admissible loads
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of Performance with European Technical Assessments for cracked and uncracked concrete and masonry
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Professional installation recommended to ensure correct anchorage depth and load capacity according to installation instructions.
Applications
- Fastening and mounting rails
- Panel materials
- Fire-protection panels
- Anchorage in concrete and masonry
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces the need for frequent replacements, minimizing waste
- Efficient fastening reduces material usage and installation time
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Pan Head W-BS/S 100 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure anchorage in concrete and masonry.
