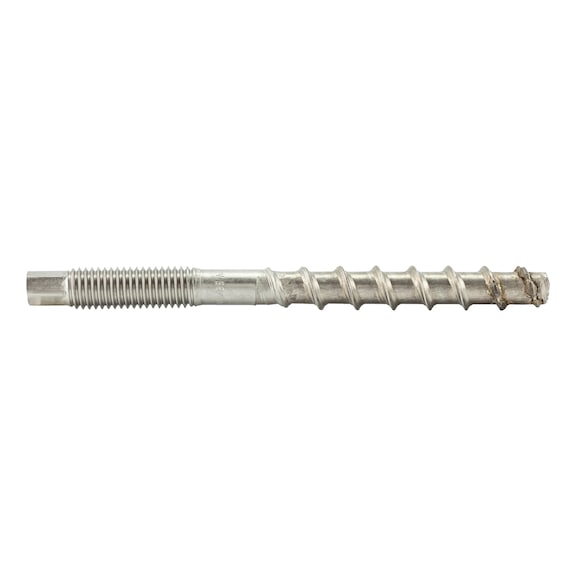

Concrete Screw Stair Bolt W-BS/A4 | A4 Stainless Steel | High Load Capacity | @Pack of 50 | by Wurth
Concrete Screw Stair Bolt W-BS/A4 is designed for high-load applications, featuring durable A4 stainless steel for superior corrosion resistance. Ideal for outdoor mounting in both reinforced and non-reinforced concrete, this bolt offers flexible anchoring depths and quick installation, making it perfect for professionals seeking reliable and removable solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 8 mm
- Anchor length: 105 mm
- Connection thread: M10
- Attachment heights: 40 mm, 30 mm, 20 mm
- Thread diameter: 10 mm
- Nominal drill-bit diameter: 8.0 mm
- Drill hole depths: 55 mm, 65 mm, 75 mm
- Embedding depths: 45 mm, 55 mm, 65 mm
- External drive: WS7
- Material: Stainless steel A4
- Through-hole diameter in component: 12.0 mm
- Head type: With connection thread (metric)
- Type description: W-BS A4 type ST
- Dimensions (H x L x W): 105mm x 105mm x 10mm
- Weight: 0.5 kg
Key Features
- Highest loads and efficient installation
- A4 stainless steel for corrosion resistance
- Extremely flexible use due to three anchoring depths
- Very high load capacity
- Smallest axial and edge clearance due to very low expansion effect
- Very fast and simple assembly, immediately load-bearing and easy to dismantle
- Pre-positioned, push-through or stand-off installation possible
- Attachment can be adjusted up to two times after assembly
- Proof of performance with European Technical Assessment ETA-16/0043
- Fire resistance ratings R30, R60, R90, R120
- National technical approval as bonded screw anchor for concrete anchoring
- Compatible with injectable mortar WIT-BS as bonded screw anchor
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchoring depth and load capacity compliance.
Applications
- Outdoor mounting attachments in concrete requiring removability
- Use in reinforced and non-reinforced, cracked and non-cracked concrete C20/25 to C50/60
- Suitable for fixing points in concrete hollow body ceilings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Efficient installation minimizes waste and resource use
- Long service life supports sustainable building practices
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth Concrete Screw Stair Bolt W-BS/A4 with Connecting Thread 50 PCS is available now for immediate purchase. Ideal for outdoor concrete mounting applications requiring removable and high-load anchors.
