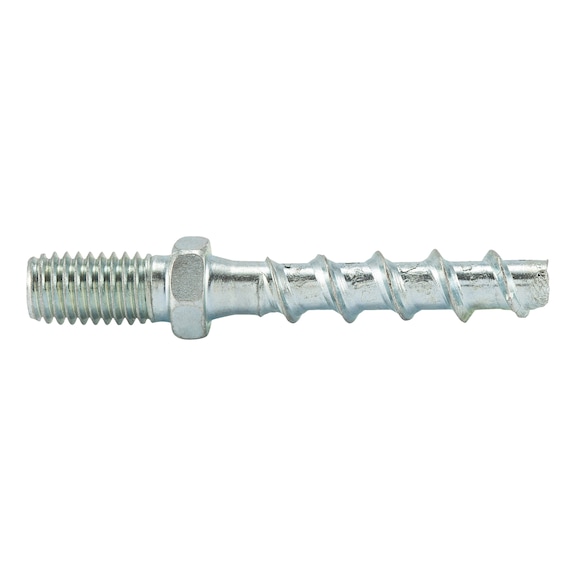

Concrete Screw W-BS/S Type ST-6 | Zinc-Plated Steel | M10 x 20 Thread | High Load Capacity | @Pack of 100 | by Wurth
Concrete Screw W-BS/S Type ST-6 is designed for reliable anchorage in concrete and masonry, featuring a zinc-plated steel finish for corrosion resistance and a metric M10 x 20 connection thread. Ideal for fastening pipe clamps and spacer sleeves, this screw offers high load capacity and adjustable fastening, making it perfect for both cracked and uncracked concrete applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 40 mm
- Connection thread: M10 x 20
- Thread diameter: 10 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depth: 40 mm (h1.1), 45 mm (h1.2)
- Embedding depth: 35 mm (h nom1), 40 mm (h nom2)
- External drive: WS13
- Material: Steel
- Surface finish: Zinc plated
- Through-hole diameter in component: 8.0 mm
- Head type: With connection thread (metric)
- Dimensions (H x L x W): 40mm x 40mm x 10mm
- Weight: 1.2 kg
Key Features
- Zinc-plated steel for corrosion resistance
- Suitable for anchorage in concrete and masonry
- Up to three effective anchorage depths for flexible application
- Metric connection thread (M10 x 20) for direct fastening
- High load capacity with very low expansion effect
- Fast and easy installation, especially overhead
- Fastening adjustable up to two times after installation
- Proof of performance with European Technical Assessments ETA-16/0043, ETA-23/0196, and ETA-16/0128
- Fire resistance ratings R30, R60, R90, R120
Professional Installation Requirements
- Installation should be performed by qualified professionals following the manufacturer's instructions to ensure proper anchorage and load capacity.
Applications
- Fastening pipe clamps and spacer sleeves in concrete and masonry
- Anchorage in cracked and uncracked concrete
- Use in construction for secure and adjustable fastening
- Suitable for overhead installations requiring immediate load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces the need for frequent replacements, minimizing waste
- Efficient fastening reduces material usage and installation time
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
Wurth Concrete Screw W-BS/S Type ST-6 Stair Bolt with Connecting Thread 100 PCS is available for immediate purchase, ideal for construction and masonry fastening applications.
