Carlo Gavazzi Level Sensor Level Probe 5 Electrode No Isolation 1000mm

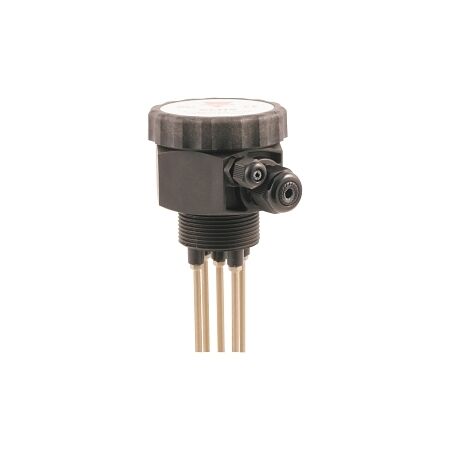

Conductive Level Sensor 5 Electrode | 1000mm | IP68 Stainless Steel by NHP

BRAND: NHP

SKU: CLH5

$147.50 List price: $195.90

+ −

30 Days Return Delivery Options

Conductive level sensor with 5 electrodes and 1000mm length—ideal for industrial and commercial applications. Built for precise level measurement, with durable stainless steel construction and IP68 protection.

Description
Attachments

Product Name/Title: Carlo Gavazzi Level Sensor Level Probe 5 Electrode No Isolation 1000mm

Brand: NHP

SKU: CLH5

Alternatively Known As: Conductive Level Probe, Level Sensor, 5 Electrode Level Sensor

Technical Specifications

Type of electric connection: Circular connector
Material process connection: Stainless steel 316 L (1.4435)
Cell constant: 0.01
Model: Conductive
Material electrode: Stainless steel 316 L (1.4435)
Degree of protection: IP68
Sensor type: Other
Type of process connection: G 1/2 inch
Max pressure: 5 bar
Max temperature: 90 °C
Max ambient temperature: 90 °C
Dimensions (H x L x W): 1000mm x 38mm x 38mm
Weight: 1.5 kg

Key Features

Conductive level sensor with 5 electrodes for accurate measurement.
Stainless steel 316 L construction for durability and corrosion resistance.
IP68 rated for protection against dust and water ingress.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Water treatment, chemical processing, and food production
Commercial: HVAC systems and level monitoring in tanks

Standards & Compliance

Complies with relevant Australian standards for safety and performance.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Level Sensor Level Probe 5 Electrode No Isolation 1000mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise level measurement.

Non-Returnable & Non-Cancellable

CLH5-AU-Level-Probe-Datasheet.pdf (CLH5-AU-Level-Probe-Datasheet.pdf, 221 Kb) [Download]
