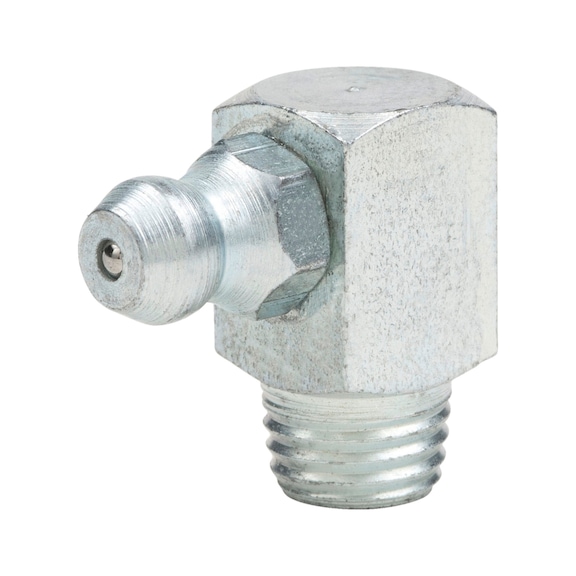

Cone Grease Nipple Angled 90° | Zinc Plated Steel | M10 x 1 Thread | Square-Cut Head | @Pack of 10 | by Wurth
The Cone Grease Nipple Angled 90° is designed for easy access in tight spaces, featuring a tapered M10 x 1 thread for secure fitting and a square-cut head for reliable wrench grip. Ideal for industrial machinery lubrication and automotive maintenance, this zinc plated steel fitting ensures corrosion resistance and complies with DIN 71412 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cone Grease Nipple Angled 90° | Zinc Plated Steel | M10 x 1 Thread | Square-Cut Head | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 98662
Alternatively Known As: Grease fitting, Lubrication nipple, Zerk fitting, Grease nipple angled 90 degrees
Technical Specifications
- Form: C, H3, Square-cut
- Thread type x nominal diameter x pitch: M10 x 1
- Nominal diameter: 10 mm
- Length: 18 mm
- Thread length (metric thread): 5.5 mm
- Width across flats: 11 mm
- Material: Steel
- Surface: Zinc plated
- Thread type: Metric thread
- Standards: DIN 71412
- RoHS-compliant: Yes
- Dimensions (H x L x W): 18mm x 18mm x 11mm
- Weight: 0.05 kg
Key Features
- Angled shape 90° for easy access in tight spaces
- Tapered metric thread M10 x 1 for secure fitting
- Square-cut head for reliable wrench grip
- Zinc plated steel for corrosion resistance
- Complies with DIN 71412 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper fitting and lubrication system integrity.
Applications
- Industrial machinery lubrication
- Automotive maintenance
- Agricultural equipment servicing
- General mechanical grease fitting
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Cone Grease Nipple Angled 90° DIN 71412 Shape C Zinc Plated Steel M10x1 is available for immediate purchase, ideal for industrial and automotive lubrication applications.
