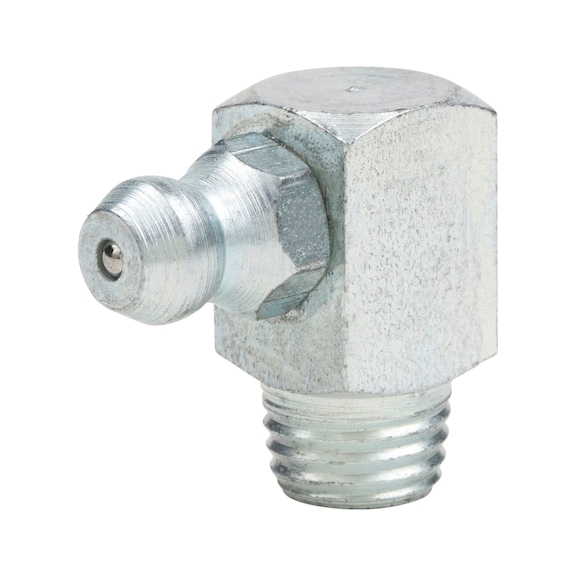

Cone Grease Nipple Angled 90° | Zinc Plated Steel | M6 Thread | DIN 71412 Compliant | @Pack of 10 | by Wurth
The Cone Grease Nipple Angled 90° is designed for easy access in tight spaces, featuring a tapered M6 x 1 thread for secure fitting. Ideal for industrial machinery, automotive maintenance, and agricultural equipment, this zinc plated steel nipple ensures reliable grease application and is compliant with DIN 71412 standards, making it a must-have for any lubrication system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cone Grease Nipple Angled 90° | Zinc Plated Steel | M6 Thread | DIN 71412 Compliant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 98660
Alternatively Known As: Grease fitting, grease nipple, angled grease fitting, lubrication nipple, DIN 71412 grease nipple
Technical Specifications
- Form: C, H3, Square-cut
- Thread type x nominal diameter x pitch: M6 x 1
- Nominal diameter: 6 mm
- Length: 18 mm
- Thread length (metric thread): 5.5 mm
- Width across flats: 9 mm
- Material: Steel
- Surface: Zinc plated
- Thread type: Metric thread
- Standards: DIN 71412
- RoHS-compliant: Yes
- Dimensions (H x L x W): 18mm x 18mm x 9mm
- Weight: 0.05 kg
Key Features
- Angled shape 90° for easy access in tight spaces
- Tapered metric thread M6 x 1 for secure fitting
- Square-cut form C design for reliable grease application
- Zinc plated steel construction for corrosion resistance
- Compliant with DIN 71412 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper fitting and lubrication system integrity.
Applications
- Industrial machinery lubrication
- Automotive maintenance
- Agricultural equipment servicing
- General mechanical systems requiring angled grease fittings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Cone Grease Nipple Angled 90° Zinc Plated Steel M6 DIN 71412 C is available for immediate purchase, ideal for industrial, automotive, and agricultural lubrication applications.
