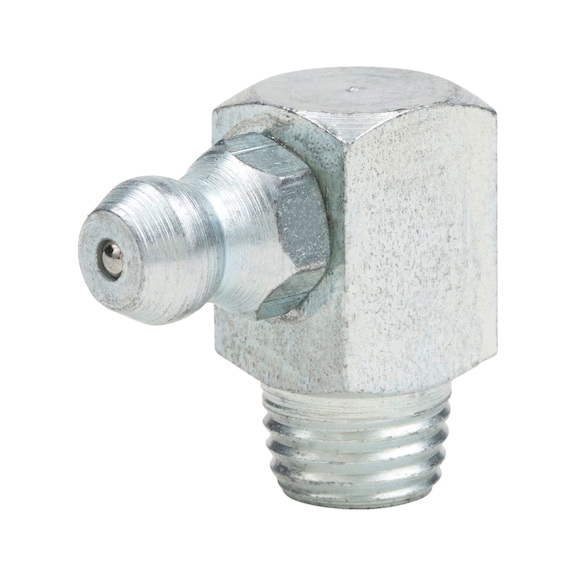

Cone Grease Nipple Angled 90° | Zinc Plated Steel | M8 x 1 Thread | DIN 71412 Compliant | @Pack of 10 | by Wurth
The Cone Grease Nipple Angled 90° is designed for easy access in tight spaces, featuring a tapered M8 x 1 thread for secure fitting. Made from zinc plated steel, it offers excellent corrosion resistance and is compliant with DIN 71412 standards. Ideal for lubrication points in machinery and automotive components, this grease fitting ensures efficient maintenance in hard-to-reach areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cone Grease Nipple Angled 90° | Zinc Plated Steel | M8 x 1 Thread | DIN 71412 Compliant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 98661
Alternatively Known As: Grease fitting, grease nipple, angled grease fitting, lubrication nipple, DIN 71412 grease nipple
Technical Specifications
- Form: C, H3, Square-cut
- Thread type x nominal diameter x pitch: M8 x 1
- Nominal diameter: 8 mm
- Length: 18 mm
- Thread length (metric thread): 5.5 mm
- Width across flats: 9 mm
- Material: Steel
- Surface: Zinc plated
- Thread type: Metric thread
- Standards: DIN 71412
- RoHS-compliant: Yes
- Dimensions (H x L x W): 18mm x 18mm x 9mm
- Weight: 0.02 kg
Key Features
- Angled shape 90° for easy access in tight spaces
- Tapered metric thread M8 x 1 for secure fitting
- Square-cut form C with width across flats 9 mm
- Zinc plated steel for corrosion resistance
- Compliant with DIN 71412 standard
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by qualified maintenance personnel to ensure proper fitting and lubrication safety.
Applications
- Lubrication points in machinery and automotive components
- Industrial equipment requiring angled grease fittings
- Maintenance of mechanical systems with limited access
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating extends product life reducing waste
- RoHS compliance ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Cone Grease Nipple Angled 90° DIN 71412 Shape C Zinc Plated Steel M8x1 is available for immediate purchase, ideal for industrial and automotive lubrication applications.
