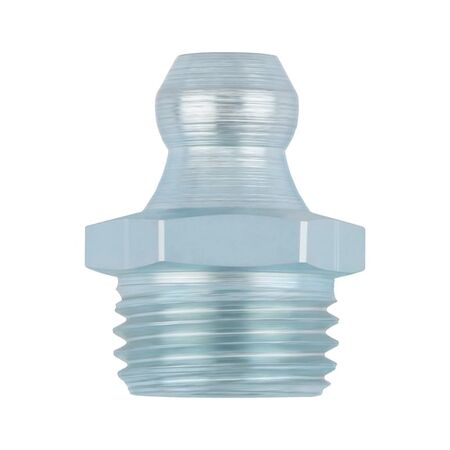

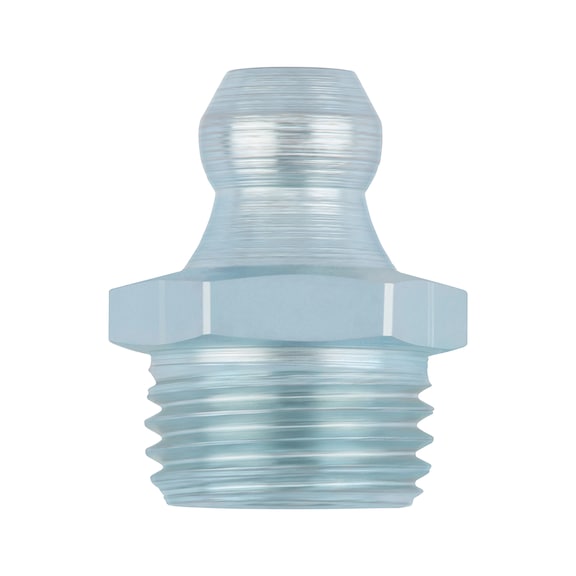

Cone Grease Nipple Shape A | Zinc-Plated Steel | DIN 71412 Compliant | @Pack of 10 | by Wurth
The Cone Grease Nipple Shape A is designed for secure lubrication in machinery and automotive components. Made from zinc-plated steel, it offers excellent corrosion resistance and complies with DIN 71412 standards. Ideal for industrial equipment maintenance and hydraulic systems, this pack of 10 ensures you have the fittings needed for efficient lubrication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cone Grease Nipple Shape A | Zinc-Plated Steel | DIN 71412 Compliant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 98640
Alternatively Known As: Grease fitting, grease nipple, lubrication nipple, grease zerk, grease connector
Technical Specifications
- Form: A, H1, Hexagonal
- Thread type x nominal diameter x pitch (d1): M6 x 1
- Nominal diameter (d1): 6 mm
- Length (l1): 15 mm
- Thread length (metric thread) (lg): 5.5 mm
- Width across flats (s1): 7 mm
- Material: Steel
- Surface: Zinc plated
- Thread type: Metric thread
- Standards: DIN 71412
- RoHS-compliant: Yes
- Dimensions (H x L x W): 15mm x 15mm x 7mm
- Weight: 0.02 kg
Key Features
- Tapered male thread for secure, self-locking connection
- Zinc-plated steel construction for corrosion resistance
- Complies with DIN 71412 standard
- RoHS-compliant material
Professional Installation Requirements
- Installation should be performed by qualified maintenance personnel to ensure proper fitting and lubrication system integrity.
Applications
- Lubrication points in machinery and automotive components
- Industrial equipment maintenance
- Hydraulic systems requiring grease fittings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant materials reduce hazardous substances
- Durable zinc plating extends product life, reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Cone Grease Nipple Shape A is available for immediate purchase, ideal for industrial and automotive lubrication applications.
