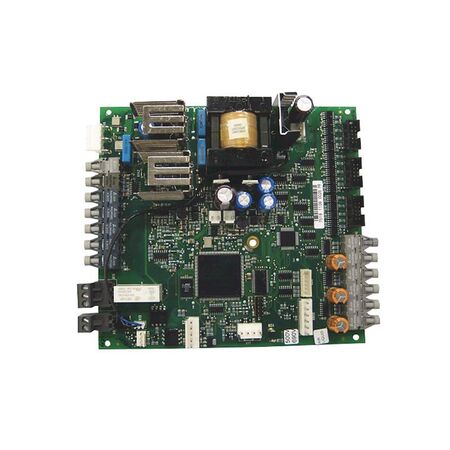

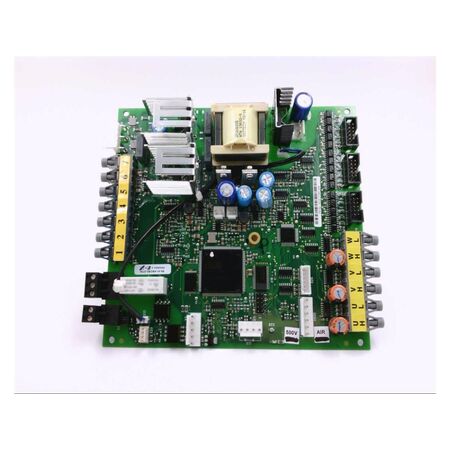

Conformal Coated ASIC Board | 400/480 VAC | 730 Amps | Open Style Mountable | by Allen-Bradley
The Conformal Coated ASIC Board is designed for PowerFlex 700H and 700S drives, featuring a voltage rating of 400/480 VAC and a current rating of 730 Amps. Ideal for industrial motor control systems, this board ensures enhanced durability and protection with its conformal coating, making it perfect for high horsepower variable frequency drives and maintenance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Rating: 400/480 VAC
- Current Rating: 730 Amps
- Board Type: ASIC PCB Control Board
- Coating: Conformal coated for environmental protection
- Mounting Style: Open style mountable
- Dimensions (H x L x W): 200mm x 50mm x 250mm
- Weight: 1.5 kg
Key Features
- Conformal coated ASIC board for enhanced durability and protection
- Compatible with PowerFlex 700H and 700S high horsepower drives
- Open style mountable PCB board design
Professional Installation Requirements
- Installation should be performed by qualified industrial electrical technicians familiar with PowerFlex drive systems to ensure safety and proper operation.
Applications
- Industrial motor control systems
- High horsepower variable frequency drives
- PowerFlex 700H and 700S drive maintenance and repair
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Conformal coating extends board life reducing electronic waste
- Supports efficient motor control contributing to energy savings
Warranty Information
Includes Radwell 2-year warranty; factory warranty does not apply.
Available Now
The Allen-Bradley SKH1ASICBDD730 ASIC Board is available for immediate purchase, ideal for industrial motor control system maintenance and repair.
