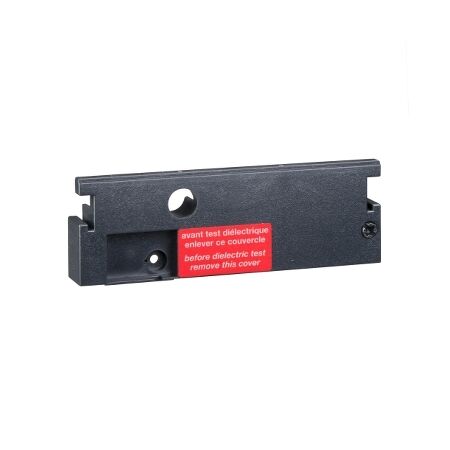

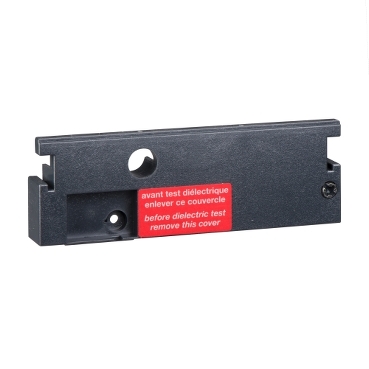

Connection for 4P VIGI on 3P D | High-Grade Insulating Plastic | Clip-On Installation | @Pack of 1 | by Clipsal
The Connection for 4P VIGI on 3P D is a vital accessory for integrating a 4-pole VIGI add-on block with a 3-pole device. Crafted from high-grade insulating plastic, it ensures reliable earth leakage protection and is designed for simple clip-on installation. Perfect for commercial and industrial switchboards, this connector enhances safety and efficiency in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Connection for 4P VIGI on 3P D | High-Grade Insulating Plastic | Clip-On Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429214
Alternatively Known As: VIGI add-on block connector, 4P VIGI to 3P D adapter, Schneider VIGI connection kit, earth leakage relay connector
Technical Specifications
- Product Type: Connection accessory for VIGI add-on block
- Compatibility: 4-pole VIGI on 3-pole device
- Material: High-grade insulating plastic
- Rated Voltage: Up to 415V AC
- Rated Current: Matches associated VIGI and circuit breaker ratings
- Mounting: Clip-on/plug-in installation
- Dimensions (H x L x W): 60mm x 80mm x 30mm
- Weight: 0.15 kg
Key Features
- Enables connection of a 4-pole VIGI add-on block to a 3-pole device
- Compatible with Schneider Electric and Clipsal circuit protection systems
- Ensures reliable earth leakage protection
- Simple and secure installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Electrical distribution boards
- Commercial and industrial switchboards
- Integration with Schneider Electric VIGI add-on blocks
- Upgrading or retrofitting circuit protection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports modular upgrades, reducing electronic waste
- Enables enhanced safety and energy efficiency in electrical systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Connection for 4P VIGI on 3P D (SCHLV429214) is available for immediate purchase. Ideal for commercial and industrial switchboard upgrades and maintenance.
