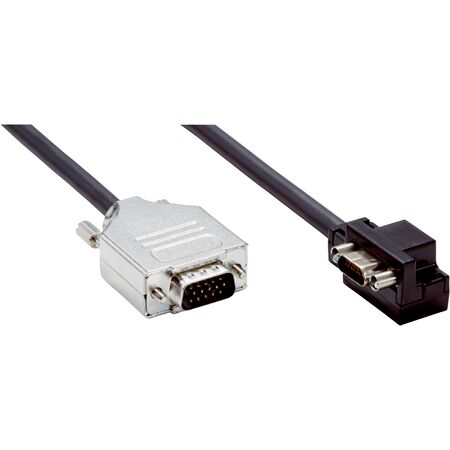

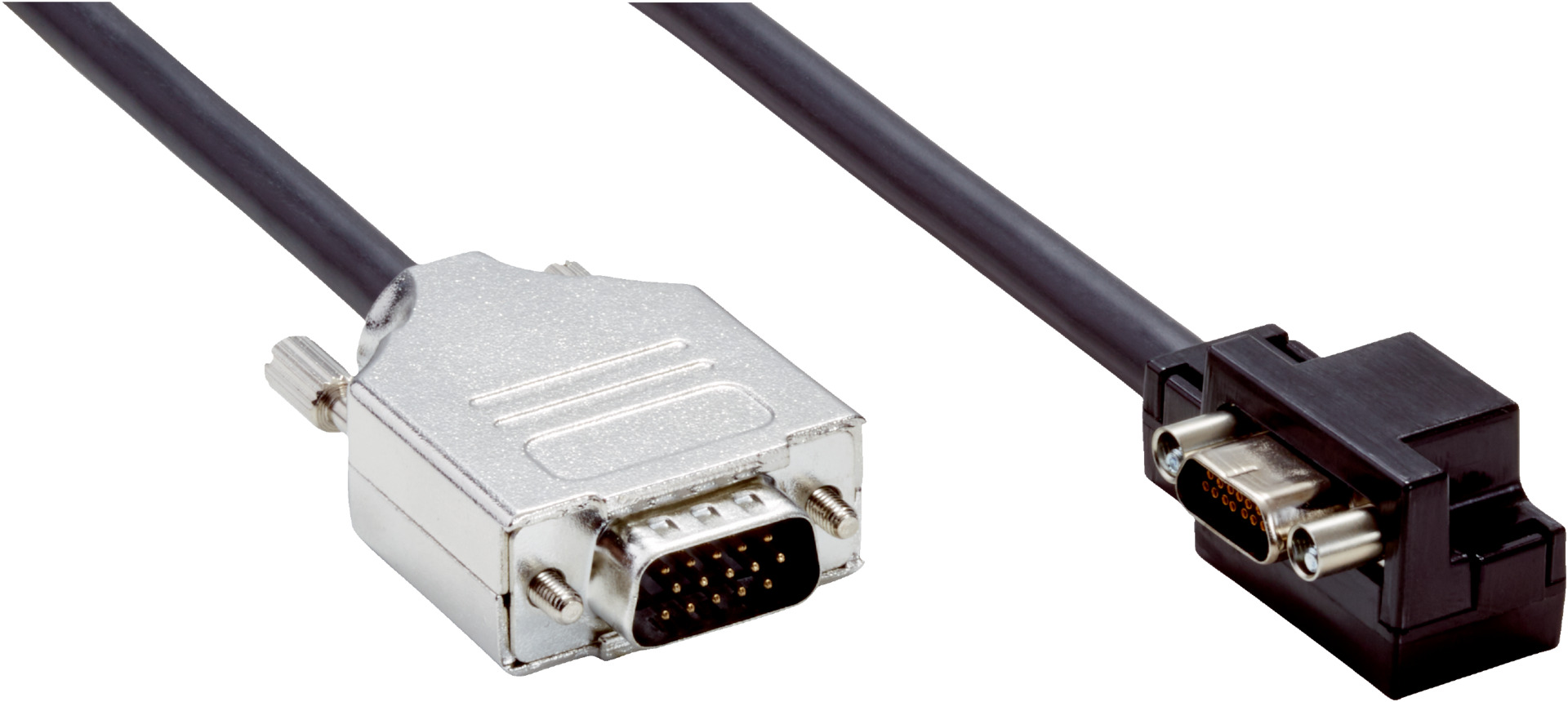

Connection Cable | Male Micro D-Sub 15-Pin Angled | Shielded Design | 2m Length | by SICK
The Connection Cable is designed for seamless integration in industrial automation, featuring a male Micro D-Sub 15-pin angled connector on one end and a male D-Sub-HD 15-pin straight connector on the other. With a 2-meter shielded design, it minimizes electromagnetic interference, ensuring reliable connections for motion control systems and encoder applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, Micro D-Sub, 15-pin, angled
- Connection type head B: Male connector, D-Sub-HD, 15-pin, straight
- Cable length: 2 m
- Shielding: Shielded
- Note: For connecting the Motion Control Module FX3-MOC with a motor feedback splitter box or a dual encoder connector box
- Dimensions (H x L x W): 20mm x 2000mm x 150mm
- Weight: 0.1 kg
Key Features
- Male connector, Micro D-Sub, 15-pin, angled on head A
- Male connector, D-Sub-HD, 15-pin, straight on head B
- Shielded cable for interference protection
- 2 meter cable length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and shielding integrity.
Applications
- Connecting the Motion Control Module FX3-MOC with a motor feedback splitter box
- Connecting to a dual encoder connector box
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Shielded design reduces electromagnetic interference, improving system efficiency and reducing signal errors.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The SICK Connection Cable is available now for immediate purchase. Ideal for industrial automation and motion control system connections.
