Connector for Copper Bars with Tapped Holes | Supports 1 or 2 Conductors | Max 10 mm² | 160 A Rated | @Each of 1 | by Legrand
The Connector for Copper Bars with Tapped Holes is designed for reliable electrical connections, supporting 1 or 2 conductors from 1.5 to 10 mm². Ideal for electrical switchboards and power cabinets, this connector ensures a maximum rated operation current of 160 A, making it perfect for industrial and commercial installations. Its durable design minimizes the need for frequent replacements, enhancing efficiency in copper distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

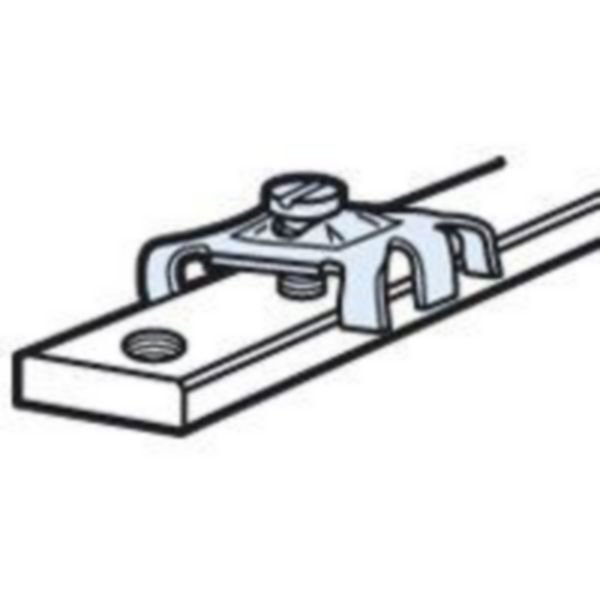

Product Name/Title: Connector for Copper Bars with Tapped Holes | Supports 1 or 2 Conductors | Max 10 mm² | 160 A Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 037365
Alternatively Known As: Copper bar connector, Busbar connector, Electrical busbar terminal, Copper distribution connector
Technical Specifications
- Busbar thickness: 4 mm
- Busbar width: 12 mm
- Max conductor cross section: 10 mm²
- Max rated operation current Ie: 160 A
- Suitable for round conductor connection: Yes
- Suitable for sector conductor connection: Yes
- Suitable for strip conductor connection: No
- Dimensions (H x L x W): 20mm x 60mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed for copper bars with tapped holes
- Supports 1 or 2 conductors from 1.5 to 10 mm²
- Suitable for flat rail busbars
- Supports round and sector conductor connections
- Maximum rated operation current of 160 A
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical switchboards and power cabinets
- Copper distribution systems
- Industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Connector for Copper Bars with Tapped Holes is available for immediate purchase, ideal for use in switchboards and power cabinets in commercial and industrial electrical systems.
