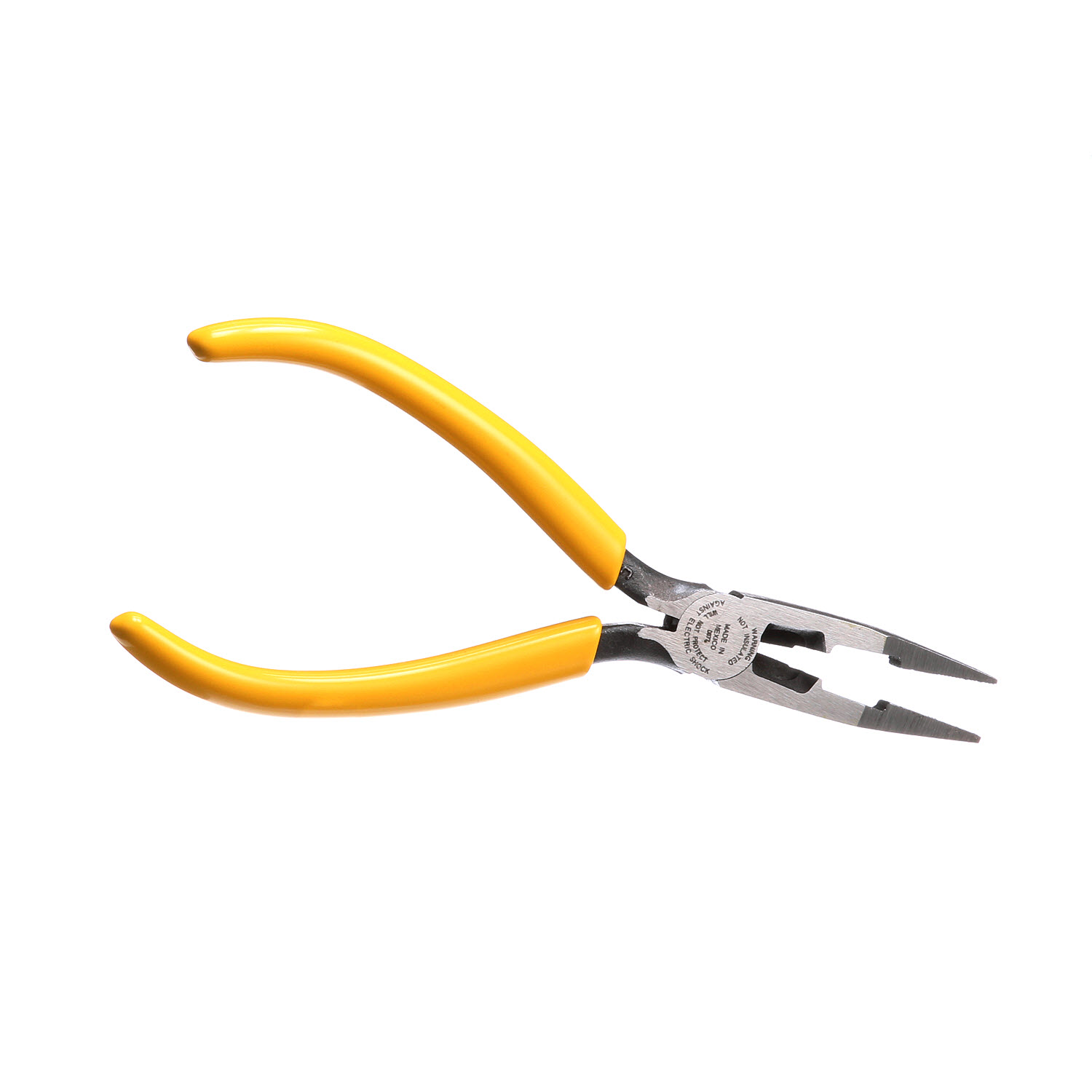

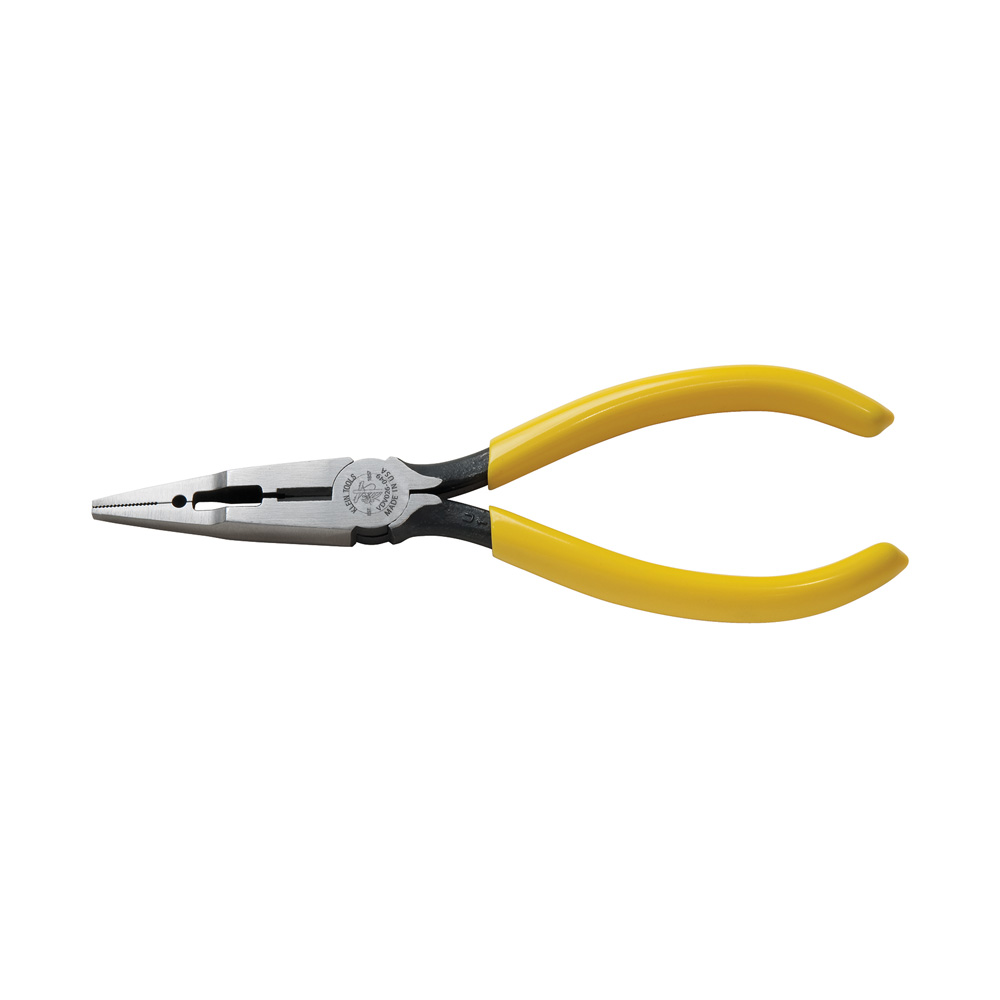

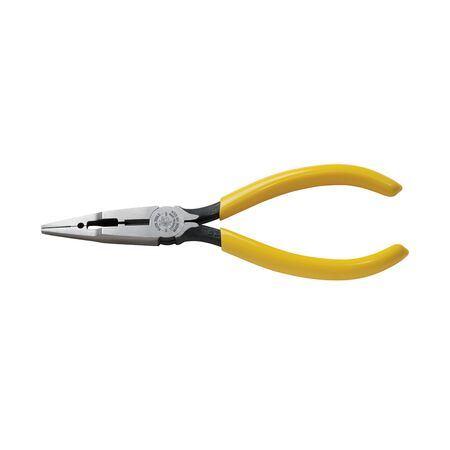

Connector Crimping Needle Nose Pliers | Crimps UR/UY/UG Connectors | Grooved Jaws for Wire Wrapping | Yellow Plastic Grips | @Each by Wattmaster
Connector Crimping Needle Nose Pliers are designed for precise crimping of UR/UY/UG insulation displacement connectors. With grooved jaws for wire wrapping and a durable induction-hardened cutting surface, these pliers are perfect for electrical and wiring applications. The yellow plastic grips enhance comfort and visibility, making them easy to identify in your toolbox.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Connector Crimping Needle Nose Pliers | Crimps UR/UY/UG Connectors | Grooved Jaws for Wire Wrapping | Yellow Plastic Grips | @Each by Wattmaster
Brand: Wattmaster
SKU: A-VDV026-049
Alternatively Known As: Long Nose Crimping Pliers, Needle Nose Crimping Pliers, Scotchlok Crimping Pliers, Wire Stripping Pliers
Technical Specifications
- Overall Length: 17.3 cm (6.68 inches)
- Jaw Length: 5.1 cm (2 inches)
- Jaw Width: 1.3 cm (0.5 inches)
- Jaw Thickness: 0.9 cm (0.36 inches)
- Point Diameter: 0.32 cm (0.125 inches)
- Knife Length: 1.1 cm (0.44 inches)
- Handle Length: 8.7 cm (3.43 inches)
- Weight: 127 g (4.5 oz)
- Handle Finish: Plastic dipped yellow grips
- Not insulated for electrical protection
- Dimensions (H x L x W): 36mm x 173mm x 13mm
- Weight: 0.127 kg
Key Features
- Crimps UR/UY/UG insulation displacement connectors (IDC) – Scotchlok® type connectors
- Cleanly strips 23 AWG and 24 AWG wire
- Grooved jaws for wire wrapping, looping and twisting
- Hot-riveted joint ensures smooth action and no wobbling handles
- Induction-hardened cutting surface for long life
- Yellow plastic grips enhance comfort and visibility, and allow quick identification
Professional Installation Requirements
- No professional installation required. Use with appropriate safety equipment such as approved eye protection.
Applications
- Crimping UR/UY/UG insulation displacement connectors (IDC) - Scotchlok® type connectors
- Wire stripping for 23 AWG and 24 AWG wires
- Wire wrapping, looping, and twisting tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Connector Crimping Needle Nose Pliers 17.3 cm are available for immediate purchase. Ideal for electrical and wiring applications requiring precise crimping and wire manipulation.
