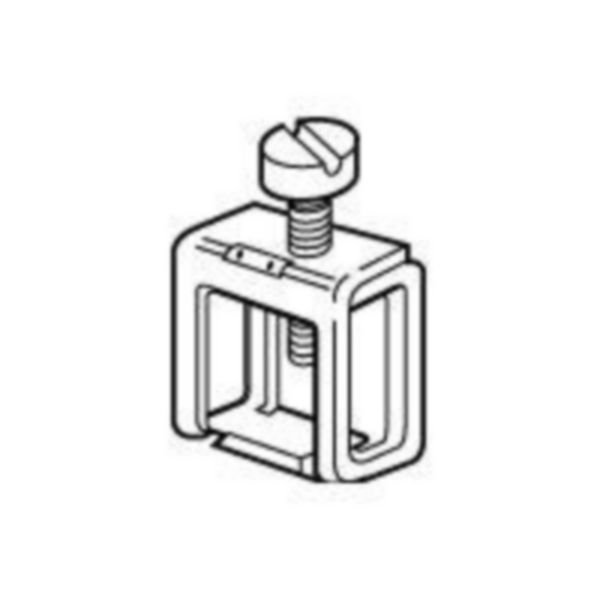

Connector for Non Perforated Bars | 1.5 to 4 mm² | 160A Rated | Compatible with Round & Sector Conductors | @EA of 1 | by Legrand
The Connector for Non Perforated Bars is designed for reliable electrical connections, supporting conductor cross sections from 1.5 to 4 mm². With a maximum rated operation current of 160A, it's perfect for use in electrical switchboards and copper distribution systems. Built for durability and efficiency, this connector ensures optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Connector for Non Perforated Bars | 1.5 to 4 mm² | 160A Rated | Compatible with Round & Sector Conductors | @EA of 1 | by Legrand
Brand: Legrand
SKU: 037360
Alternatively Known As: Copper bar connector, Busbar connector, Electrical busbar connector
Technical Specifications
- Busbar thickness: 4 mm
- Busbar width: 12 mm
- Max conductor cross section: 4 mm²
- Max rated operation current Ie: 160 A
- Suitable for round conductor connection: Yes
- Suitable for sector conductor connection: Yes
- Suitable for strip conductor connection: No
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Connector suitable for non perforated copper bars
- Compatible with busbar thickness of 4 mm and width of 12 mm
- Supports conductor cross section from 1.5 to 4 mm²
- Suitable for round and sector conductor connections
- Maximum rated operation current of 160 A
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical switchboards and power cabinets
- Copper distribution systems
- Flat rail busbar connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Connector for Non Perforated Bars 1.5 to 4 mm² is available for immediate purchase, ideal for use in electrical switchboards and copper distribution systems.
