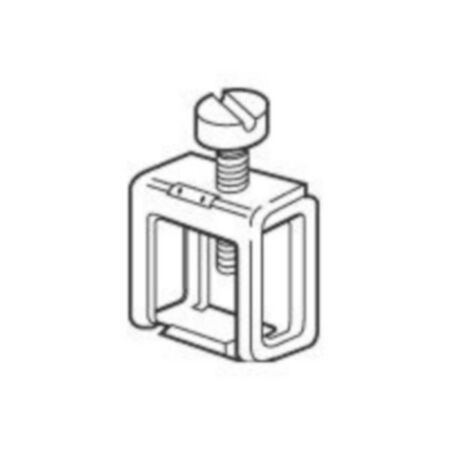

Connector for Non-Perforated Bars | 10 to 35 mm² | M6 CHC Screws Included | by Legrand
This connector for non-perforated bars supports conductor cross sections from 10 to 35 mm², making it ideal for electrical switchboards and copper distribution systems. Built for reliable connections, it includes M6 CHC 5 mm screws for secure fastening and is compatible with both round and sector conductor connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Connector for Non-Perforated Bars | 10 to 35 mm² | M6 CHC Screws Included | by Legrand
Brand: Legrand
SKU: 037362
Alternatively Known As: Copper Bar Connector, Busbar Connector, Electrical Busbar Connector
Technical Specifications
- Busbar thickness: 4 mm
- Busbar width: 12 mm
- Max conductor cross section: 35 mm²
- Max rated operation current Ie: 160 A
- Suitable for round conductor connection: Yes
- Suitable for sector conductor connection: Yes
- Suitable for strip conductor connection: No
- Supplied with M6 CHC 5 mm screws
- Dimensions (H x L x W): 20mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- Connector suitable for non-perforated copper bars
- Supports conductor cross sections from 10 to 35 mm²
- Includes M6 CHC 5 mm screws for secure fastening
- Compatible with flat rail busbars
- Supports round and sector conductor connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical switchboards and power cabinets
- Copper distribution systems
- Industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for electrical switchboards and copper distribution applications.
