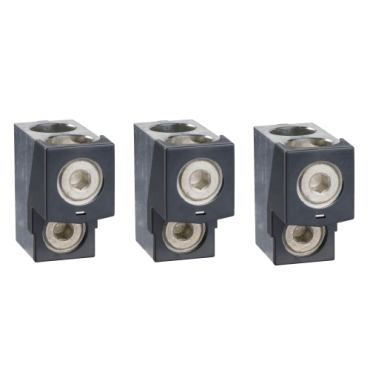

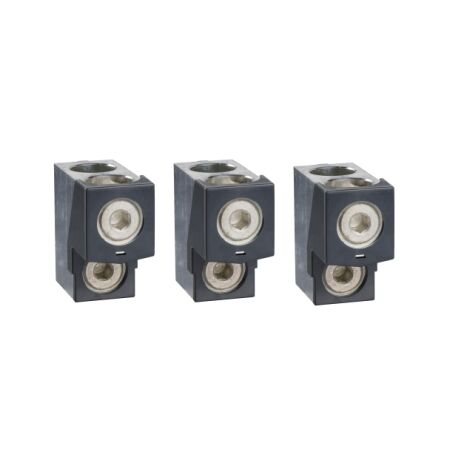

3 (2x 35-240MM²) Connectors PH | High-Conductivity Copper Alloy | Insulated Housing | @Pack of 1 | by Clipsal
The 3 (2x 35-240MM²) Connectors PH are designed for high current applications, accommodating two cables per phase from 35mm² to 240mm². Made from high-conductivity copper alloy with insulated housing, these connectors ensure safety and reliability in electrical distribution boards, industrial switchboards, and renewable energy systems. Ideal for licensed electricians, they provide secure screw connections for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 (2x 35-240MM²) Connectors PH | High-Conductivity Copper Alloy | Insulated Housing | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV432481
Alternatively Known As: power connector, heavy duty cable connector, electrical cable joiner, SCHLV432481, Clipsal cable connector
Technical Specifications
- Cable Capacity: 2 x 35-240mm² per phase
- Material: Copper alloy with insulated housing
- Rated Voltage: 1000V AC/DC
- Rated Current: Up to 415A (depending on cable size)
- Connection Type: Screw clamp
- Flame retardant housing
- Dimensions (H x L x W): 60mm x 120mm x 80mm
- Weight: 0.7 kg
Key Features
- Accommodates 2 cables per phase from 35mm² to 240mm²
- High-conductivity copper alloy construction
- Insulated housing for enhanced safety
- Suitable for high current applications
- Easy installation with secure screw connections
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian standards and optimal safety.
Applications
- Electrical distribution boards
- Industrial switchboards
- Commercial and residential power installations
- Renewable energy systems
- Heavy-duty cable joining and termination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Supports efficient power distribution, minimizing energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 (2x 35-240MM²) Connector PH SCHLV432481 is available for immediate purchase. Ideal for industrial, commercial, and large-scale residential electrical installations.
