Constant Force Spring 31-50MM | 304 Stainless Steel | High Output Force | Reliable Solderless Continuity by Cabac

BRAND: CABAC
SKU: CFS4
$107.70 List price: $130.40
+ −
30 Days Return Delivery Options

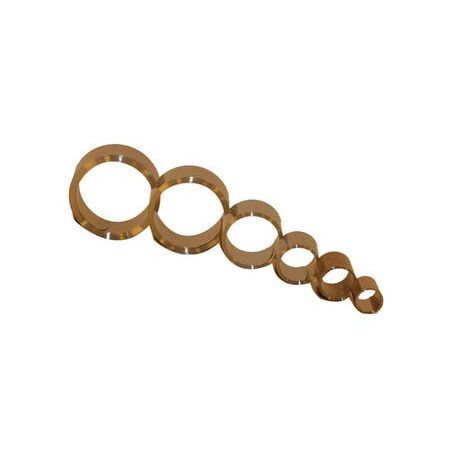

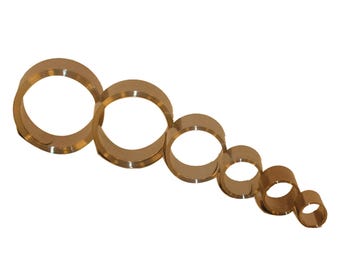

The POWERJOINT Constant Force Spring 31-50MM by Cabac provides constant radial pressure to secure sheaths, tapes, and wires, ensuring reliable solderless continuity in electrical jointing and termination.

Product Name/Title: POWERJOINT Constant Force Spring 31-50MM

Brand: Cabac

SKU: CFS4

Alternatively Known As: Constant Force Cable Spring, Cable Securing Spring, Radial Pressure Spring, Cable Joint Spring

Technical Specifications
  • Material: 304 Stainless Steel
  • Size Range: 31-50mm
  • Function: Exerts constant radial pressure
  • Application: Secures sheaths, tapes, and wires
  • Installation: Threaded around cable core or outer
  • Dimensions (H x L x W): 10mm x 50mm x 50mm
  • Weight: 0.05 kg
Key Features
  • Exerts a constant radial pressure to secure sheaths, tapes, and wires
  • Easily applied by threading around the cable
  • Provides reliable solderless continuity
  • High output force
  • Made from 304 Stainless Steel
  • Available in a large range of sizes
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or technician to ensure proper application and safety.
Applications
  • Securing sheaths, tapes, and wires in electrical and power connectivity applications
  • Cable jointing and termination tasks requiring reliable solderless continuity
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel construction reduces the need for frequent replacements
  • Solderless continuity reduces hazardous waste from soldering materials
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.

Available Now

The POWERJOINT Constant Force Spring 31-50MM by Cabac is available for immediate purchase, ideal for electrical jointing and termination applications.
