Construction Screw ASSY®plus VG 4 COMBI Full Thread Hexagon Head High Load-Bearing Wurth

BRAND: Wurth
SKU: 150208120
$349.50 List price: $439.30
75 PCS ($4.66 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access

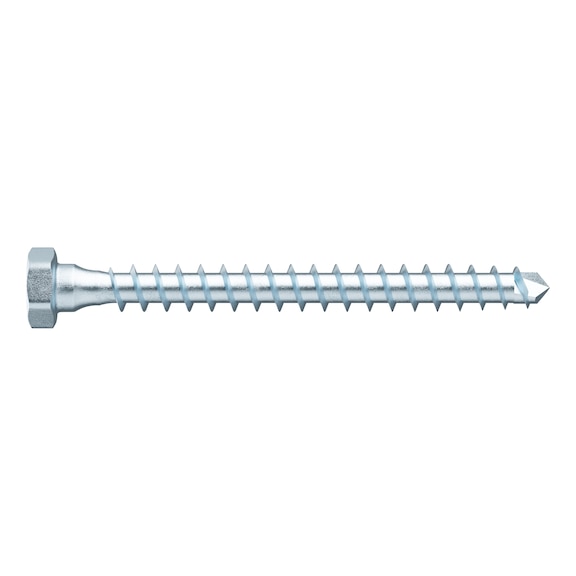

The ASSY®plus VG 4 COMBI construction screw is designed for high-load-bearing metal-wood connections
Technical Specifications
  • Dimensions (H x L x W): 4.5mm x 120mm x 8mm
  • Weight: 0.15 kg
Key Features
  • Full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections
  • Suitable for structural wood construction requiring small edge and screw clearances
  • Ideal power transmission thanks to RW drive with larger contact area at the bit
  • More stability and precise positioning due to tight-fit recess and perfect bit fit
  • Compatibility with previous AW drive and flexible assembly with high power transmission
  • Combination of hexagon head and RW drive with reinforced shaft attachment
  • Symmetrical high-performance thread matched to pre-drilling performance of drill bit tip
  • Extremely short permitted edge distances (e.g., 3xd), usable for beam widths 60 mm
  • No pre-drilling required, wood does not split or rupture
  • High strength values and ductility due to adjusted heat treatment
  • RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
  • Recommended installation by professionals familiar with timber and metal-wood structural connections to ensure safety and compliance.
Applications
  • Timber construction
  • Timber panel construction
  • Metal wood connections
  • Post screws
  • Structural woodwork
  • Element construction
  • Bridge construction
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • RoHS-compliant ensuring reduced hazardous substances
  • Durable zinc plated surface extends product life reducing waste
Warranty Information

Warranty details available upon request from Wurth; product quality guaranteed by manufacturer.

Available Now

Available for immediate purchase, ideal for timber and metal-wood structural construction applications.
