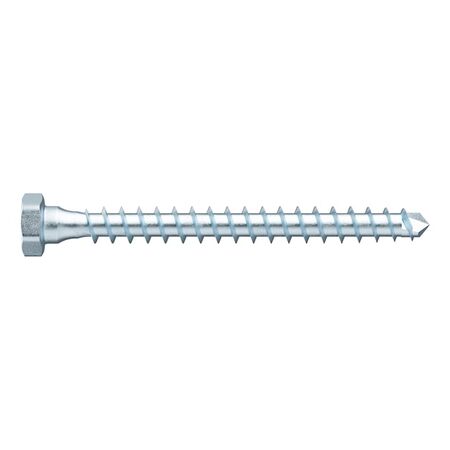

Construction Screw ASSY®plus VG 4 COMBI | Full Thread Hexagon Head | Zinc Plated | @Pack of 100 | by Wurth
The ASSY®plus VG 4 COMBI construction screw is designed for high-load timber and metal-wood connections, featuring a full thread and hexagon head for optimal power transmission. Ideal for professionals in timber construction, this screw eliminates the need for pre-drilling, ensuring precise positioning and structural integrity in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Construction Screw ASSY®plus VG 4 COMBI | Full Thread Hexagon Head | Zinc Plated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 150206080
Alternatively Known As: Construction screw, Structural wood screw, Metal-wood connection screw, Hex head wood screw, Full thread timber screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 80 mm
- Head type: Hexagon head
- Head height: 3 mm
- External drive: WS9
- Internal drive: RW25
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 71 mm
- Screw-thread length with drill tip: 71 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Core diameter: 3.8 mm
- Tip shape: Drilling tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 3mm x 80mm x 6mm
- Weight: 0.05 kg
Key Features
- Full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Combination of hexagon head and RW drive with reinforced shaft attachment
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility due to adjusted heat treatment
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct application and structural integrity in timber and metal-wood connections.
Applications
- Timber construction
- Timber panel construction
- Metal wood connections
- Post screws
- Structural woodwork
- Element construction
- Bridge construction
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
- High strength and durability reduce material waste and maintenance needs
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY®plus VG 4 COMBI construction screw is available for immediate purchase, ideal for high-load timber and metal-wood structural applications.
