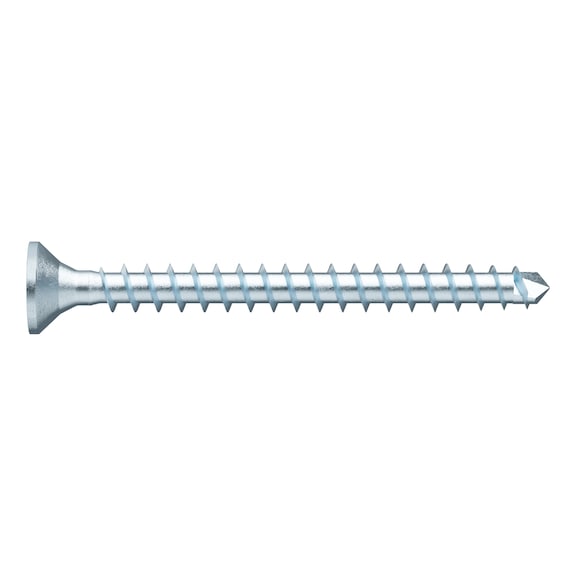

Construction Screw ASSYplus VG 4 CS | Full Thread & Countersunk Head | Zinc Plated | @Pack of 50 | by Wurth
The ASSYplus VG 4 CS construction screw is designed for high-load-bearing wood and metal connections, featuring a full thread and countersunk head for a seamless finish. Ideal for structural woodwork and interior fittings, this screw ensures no pre-drilling is required, preventing wood splitting. With its durable zinc plating, it offers long-lasting performance in both dry and wet areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Construction Screw ASSYplus VG 4 CS | Full Thread & Countersunk Head | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 150110220
Alternatively Known As: Construction screw, Wood screw, Zinc plated screw, Countersunk head screw, Full thread screw, Structural wood screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 220 mm
- Thread length: 197 mm
- Head type: Countersunk head
- Head diameter: 20 mm
- Head height: 6.5 mm
- Internal drive: RW50
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 6.2 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.5mm x 220mm x 20mm
- Weight: 0.074 kg
Key Features
- Full-thread screw with countersunk head for universal use
- Suitable for high-load-bearing wood-wood and wood-metal connections
- Ideal for indoor dry or wet areas
- RW drive for ideal power transmission and fewer bit changes
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Symmetrical high-performance thread matched to drill bit tip pre-drilling performance
- Extremely short permitted edge distances (e.g., 3xd)
- No pre-drilling required, wood does not split or rupture
- High strength values and ductility with adjusted heat treatment
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure structural integrity and compliance with building codes.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Interior fitting
- Lateral compression reinforcement
- Metal wood connections
- On rafter insulation
- Roof
- Tensile shear connection
- Wood-concrete-composite
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSYplus VG 4 CS construction screw is available for immediate purchase, ideal for structural wood and metal connection applications.
