Contact Block 1 NC for 22.5mm Pushbutton | Gold Contacts | Low Voltage by NHP
Contact block with 1 NC contact and gold contacts—ideal for industrial control panels and machinery. Built for low voltage applications, compatible with 22.5mm operator devices, ensuring reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

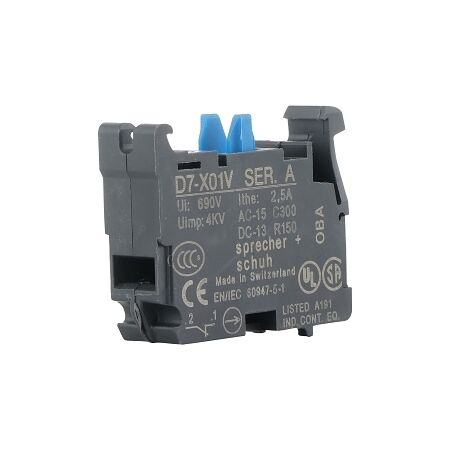

Product Name/Title: Sprecher and Schuh D7 Contact Block 1 NC for 22.5 mm Pushbutton Operators Gold Contacts Low Voltage
Brand: NHP
SKU: D7X01V
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, NC Contact Block
Technical Specifications
- Number of Contacts: 1 NC
- Rated Insulation Voltage: 150 V
- Rated Operation Current at 40°C: 2.5 A
- Rated Operation Current at AC 15 (120 V): 3 A
- Rated Operation Current at AC 15 (240 V): 0.75 A
- Rated Operation Current at DC 13 (125 V): 0.22 A
- Minimum Contact Rating Current: 1 mA
- Minimum Contact Rating Voltage: 5 V
- Dimensions (H x L x W): 22.5mm x 45mm x 22.5mm
- Weight: 0.2 kg
Key Features
- 1 Normally Closed (NC) contact for reliable operation.
- Compatible with 22.5mm operator control devices.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and automation systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for low voltage applications, reducing energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block 1 NC is available now for immediate purchase. Ideal for industrial control applications.
