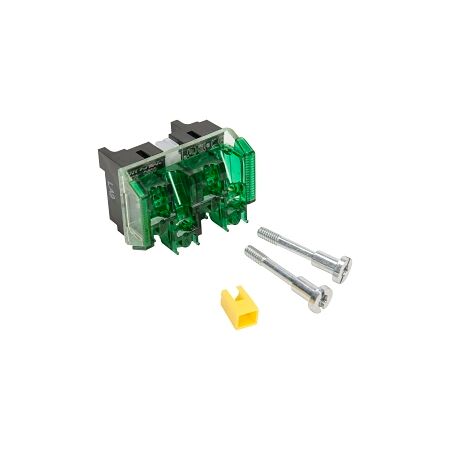

Contact Block 1 N.C. Late Break | 30.5mm Operator | FS Terminal Guard by NHP

BRAND: NHP
SKU: 800TCXD4
$42.60 List price: $56.60
+ −
30 Days Return Delivery Options
Contact block with 1 N.C. late break contact and FS terminal guard—ideal for industrial control panels and machinery. Built for enhanced safety and reliability, designed for 30.5mm operator control devices.

Product Name/Title: Allen-Bradley 800T Contact Block FS Terminal Guard Shallow 1 N.C. Late Break Contact for 30.5mm PB

Brand: NHP

SKU: 800TCXD4

Alternatively Known As: 800T Contact Block, Auxiliary Contact Block, Pushbutton Contact Block

Technical Specifications
  • Number of Auxiliary Contacts: 1 N.C. (Delayed Switching)
  • Rated Insulation Voltage: 300 V
  • Rated Operation Current at 40°C: 10 A
  • Rated Operation Current at AC 15 (120 V): 6 A
  • Rated Operation Current at AC 15 (240 V): 3 A
  • Rated Operation Current at AC 15 (400 V): 1.8 A
  • Rated Operation Current at DC 13 (110 V): 0.63 A
  • Rated Operation Current at DC 13 (125 V): 0.55 A
  • Rated Operation Current at DC 13 (250 V): 0.27 A
  • Minimum Contact Rating Current: 24 mA
  • Minimum Contact Rating Voltage: 24 V
  • Dimensions (H x L x W): 30mm x 30mm x 30mm
  • Weight: 0.3 kg
Key Features
  • 1 N.C. late break contact for enhanced safety.
  • Designed for 30.5mm operator control devices.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Control panels, machinery, and automation systems
  • Commercial: Equipment requiring reliable control mechanisms
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 800T Contact Block FS Terminal Guard Shallow is available now for immediate purchase, suitable for various industrial and commercial applications.

800TCXD4-AU-Contact-Block-for-30.5mm-Operator-Control-Devices-Datasheet.pdf (800TCXD4-AU-Contact-Block-for-30.5mm-Operator-Control-Devices-Datasheet.pdf, 294 Kb) [Download]
